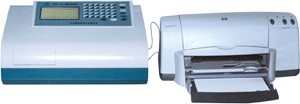

DNM-9602 Microplate Reader


Specifications

Spectrum range: 400 - 700nm

Datasheet    User Manual
Measurement System:
 8-Channel optical system
Measurement Range:
 0.001~3.500Abs
Photometric Accuracy:
 ±1% or ±0.001Abs
Repeatability:
 < ±0.5%
Stability:
 < 0.005Abs
Linearity:
 < ±1%
Reading Speed:
 < 5secs/96holes(single wavelength)
< 7secs/96holes(double wavelength)
Filters:
 The microplate reader can be equiped with 7 filters. Four filters are included, normally 405, 450, 492 and 630.
These filters can be changed upon request and can choose from 340, 405, 450, 492, 510, 546, 578, 630 or other filters within the range.
Any filters from 400nm to 700nm can be specified but will incease the lead time.
The filters have ±10% accuracy.

Note: Printer is not included
