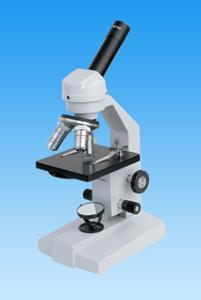

Viewing Head: Monocular head , 45° inclined, 360° rotatable
|
|
Eyepiece: Wide field eyepiece WF10X18mm with pointer
|
|
Objective: DIN 195mm achromatic objective as 4X,10X,40XS.
|
|
Condense: N.A.0.65 condenser, Disc diaphragm with five-aperture, ieasy
illumination adjustment
|
|
Stage: 110mm * 120mm plain stage.
|
|
Nosepiece: Triple nosepiece.
|
|
Focusing: Detached focusing, coarse and fine focus mechanism.
|
|
Illumination: θ42mm plano and concave mirror.
|
|
|
M-100F
|
|
 |
|

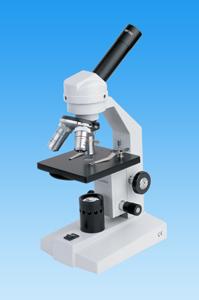

Viewing Head: Monocular head , 45°
inclined, 360° rotatable
|
|
Eyepiece: Wide field eyepiece WF10X18mm with pointer
|
|
Objective: DIN 195mm achromatic objective as 4X/0.10,10X/0.25,40XS/0.65.
|
|
Condense: N.A.0.65 condenser, Disc diaphragm with five-aperture, easy illumination
adjustment
|
|
Stage: 110mm *120mm plain stage.
|
|
Nosepiece: Triple nosepiece.
|
|
Focusing: Detached focusing, coarse and fine focus mechanism.
|
|
Illumination: Built-in illumination system with 230V/20W tungsten bulb
(CE and GS approved) or 115V/20W tungsten bulb. fluorescent light and LED
light to choose.
|
|
|
M-100FL
|
 |
|

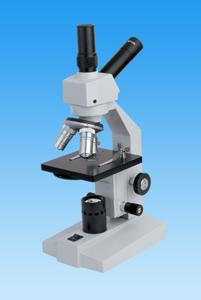

Viewing Head: Dual viewing head, 30° inclined, 360° rotatable, Observation
image of the perpendicularly mechanical tube can be adjusted; Photo tube, photo
adaptor and photo eyepiece (PK-PH) are needed for pictures; TV adaptor(CTV)
and CCD are needed to output vidoes,
|
|
Eyepiece: Wide field eyepiece WF10X18mm with pointer
|
|
Objective: DIN 195mm achromatic objective as 4X/0.10,10X/0.25,40XS/0.65.
|
|
Condense: N.A.0.65 condenser, Disc diaphragm with five-aperture.
|
|
Stage: 110mm * 120mm plain stage.
|
|
Nosepiece: Triple nosepiece.
|
|
Focusing: Detached focusing, coarse and fine focus mechanism.Built-in illumination
system with 230V/20W tungsten bulb (CE and GS approved) or 115V/20W
tungsten bulb. fluorescent light and LED light to
choose.
|
|
|

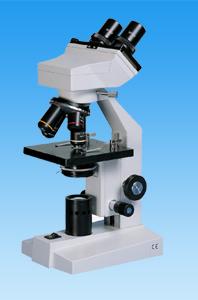

DM-100FL
|
 |
|
Viewing Head:Binocular head 45° inclined,360° rotatable.
|
|
Eyepiece: Wide field eyepiece-WF10X18mm.
|
|
Objective: DIN 195mm achromatic objective as 4X/0.10,10X/0.25,40XS/0.65,100XS(oil)/1.25
|
|
Condense: Spiral type Abbe.N.A.1.25 condenser with iris diaphragm.
|
|
Stage: 110mm * 120mm plain stage.
|
|
Nose piece: Quadruple nosepiece.
|
|
Focusing: Detached focusing, coarse and fine focus mechanism. Built-in illumination system with 230V/20W tungsten bulb (CE and GS approved) or
115V/20W tungsten bulb. fluorescent light and LED light to choose.
|
|
|
BM-100FL
|
Specification:
| Model |
M-100F |
M-100FL |
DM-100FL |
BM-100FL |
| Total Magnification |
400X(2000X) |
1000X(2000X) |
| Eyepiece |
Wide field eyepiece WF10X18mm with
pointer |
Wide field eyepiece WF10X18mm
|
| Achromatic objectives |
4X,10X,40XS |
4X,10X,40XS,100XS |
| Viewing head |
Monocular head |
Dual viewing head |
Binocular head |
| Mechanical tube length |
160mm |
| Mechanical stages size |
110mm * 120mm plain stage |
| Coarse focus range |
8.7mm |
| Fine focus range |
1.2mm |
| Illumination |
θ42mm plano and concave mirror |
Built-in illumination system with tungsten bulb (CE and GS approved) |
| Condenser |
built-in 0.65 N.A. condenser |
Spiral type Abbe.N.A.1.25
condenser |
| Accessories |
Multifarious eyepiece, objective and Simple
polarizing device... |
|
