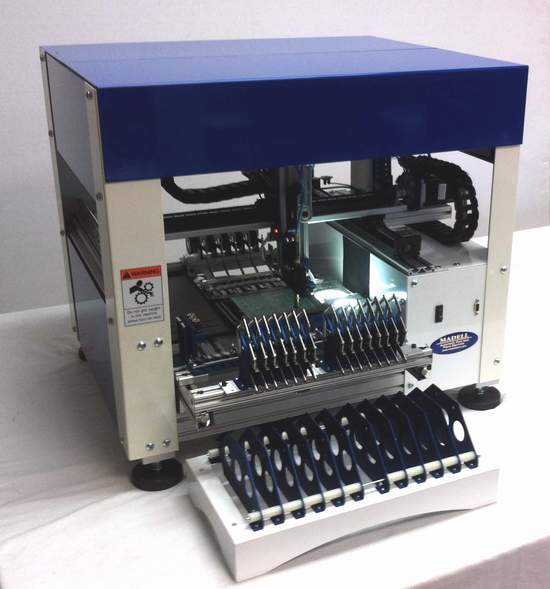

Mini-X2, with top cover and upgraded ball screw actuators

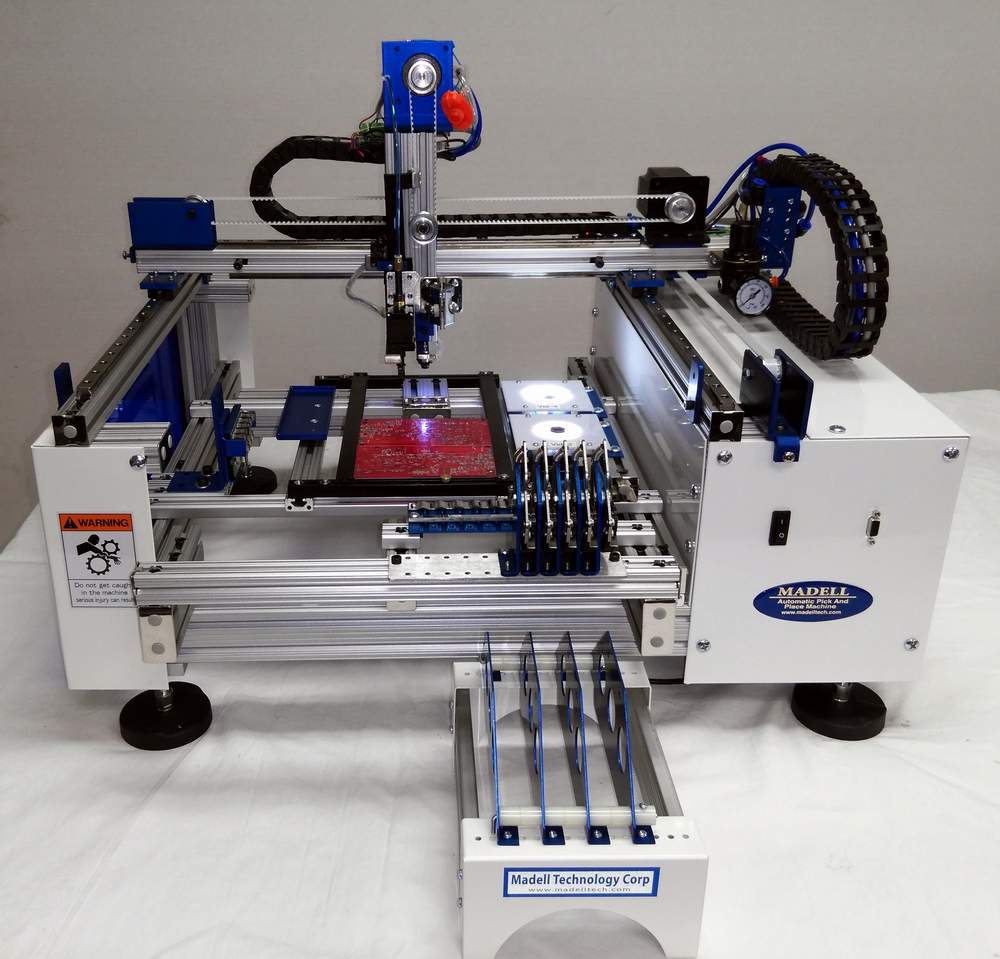

Small desktop automatic pick and place machine with full vision.
Features:
2000 estimated pph(parts per hour)
300mm x 420mm working area
Placement of 0201 standard
Two high resolution digital cameras, 1280x960 pixels, included
Computer vision automatic centering system for IC's (SOP, QFP, BGA) and
better placement of small parts, software fly vision centering, included
Smart Vision: no need of reference or template pictures for most SMT parts; IC is centered as a whole part and also based on pins. Accurate and easy to use
Fully programmable digital Z-axis and Theta rotation angles
X and Y axis 0.01mm resolution, 0.045° rotational resolution
Stepper motors
30 max. 8mm feeder capacity
Automatic PCB board position correction with fiducial recognition included
CAD file convert function
12 month full factory warranty - parts & labor
Easy to use graphic software for quick programming. Programming can be
done with teaching video camera, on screen Gerber file graphics or CAD
file
110V AC 60Hz, or 220 V AC, 50Hz, 1500 watts electrical
