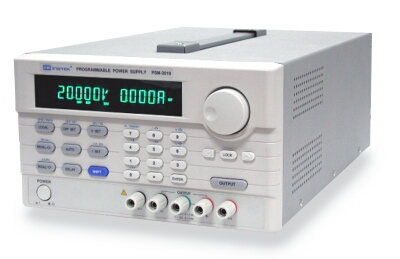

Instek PSM-Series - Programmable Dual-Range D.C. Power Supply









FEATURES：

Single Output Dual Range Max. 200W
High Resolution: 1mV/1mA
Stable & Clear Power: 0.01% Load/Line Regulation, 350uVrms Ripple
Auto Step running with timer setting and 100 sets Memory
Safety Design: OVP, OCP & OTP ; Output ON/OFF Control
Self-Test and Software Calibration
High Visible Vacuum-Fluorescent Display
Front and Rear Output Terminal
LabView Driver
RS-232C, GPIB Interface (Option)
Interface (Standa)：RS-232
Interface (Option)：GPIB (IEEE 488.2)


Data Sheet      User Manual     Programmer Manual
   SPECIFICATIONS
    DC Output

PSM-2010

 PSM-3004 PSM-6003
0 ~ +8V / 20A
0 ~ +20V / 10A		 0 ~ +15V / 7A
0 ~ +30V / 4A		 0 ~ +30V / 6A
0 ~ +60V / 3.3A
    Constant Voltage Operation Regulation + (% of output + offset) Load Regulation < 0.01% + 2mV
Line Regulation < 0.01% + 2mV
Ripple & Noise
350uVrms/3mVpp
 350uVrms/2mVpp 550uVrms/3mVpp
    Constant Current Operation Regulation + (% of output + offset) Load Regulation < 0.01% + 250uA
Line Regulation < 0.01% + 250uA
Ripple & Noise
< 2mArms
    Response Time Voltage Up < 100mS
Voltage Down < 100mS
    Resolution Programming Voltage
Programming Current
1mV
1mA
1mV
1mA 		2mV
1mA
Readback Voltage
Readback Current
1mV
1mA
1mV
1mA 		2mV
1mA
Meter Voltage
Meter Current 		1mV
1mA (<10A), 10mA(>10A)
    OVP OVP 10mV
    OCP OCP 10mA
    Accuracy Programming Voltage
Programming Current		 0.05% + 10mV
0.2% + 10mA
  Readback Voltage
Readback Current 		0.05% + 5mV
0.15% + 5mA
  OVP / OCP Accuracy + (%Output + Offset)
Voltage
 0.05% + 10mV
Current 0.1% + 10mA
    Temperature Coefficient per °C+
    (% Output + Offset)		 Voltage 100ppm + 3mV
Current 100ppm + 3mA
    Interface RS-232C (Standard)
GPIB (Option)
    Power Source AC 100V/120V/220V+10%, 230V+10%~-6%, 50/60Hz
    Accessories Power cord x 1,
Instruction manual x 1
    Dimensions & Weight 230(W) x 140(H) x 380(D) mm, Approx. 10 kg
