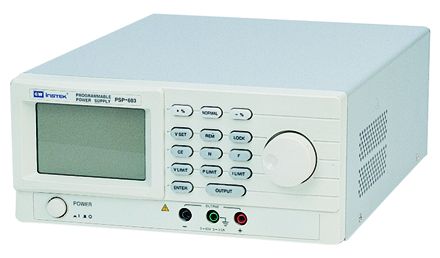

Instek PSP-Series - Programmable Switching D.C. Power Supply

FEATURES：
|
 LCD Display |
| Output ON/OFF
Control |
| 3 Step Fan Speed
Control |
| Setting of Voltage/ Current/
Power |
| Key Lock to Avoid Error
Operation |
| Normal, +% & -% Output
Operation Key |
| High Efficinecy and High
Power Density |
| Standard Interface:
RS-232C |
| Option: Jack Type Terminal
for Europe |
 Data Sheet User & Programmer Manual
|
| SPECIFICATIONS |
| |
|
|
|
|
OUTPUT |
Model |
PSP-603 |
PSP-405 |
PSP-2010 |
| Voltage |
0~60V |
0~40V |
0~20V |
| Current |
0~3.5A |
0~5A |
0~10A |
|
| VOLTAGE REGULATION |
Load |
< 10mV
|
< 10mV
|
< 10mV
|
| Line |
< 0.05%
|
< 0.05%
|
< 0.05%
|
|
| CURRENT REGULATION
|
Load |
<
5mA |
<
5mA |
<
5mA |
| Line |
< 0.05%
|
< 0.05%
|
< 0.05%
|
|
| RIPPLE |
Voltage (mVrms) |
<
20mV |
<
20mV |
<
20mV |
| Current (mArms) |
<
10mA |
<
10mA |
<
10mA |
|
| RESOLUTION
|
Voltage |
20mV |
10mV |
10mV |
| Current |
2mA |
2mA |
5mA |
|
| PROGRAM
ACCURACY |
Voltage |
<
40V |
±0.05%rdg+3digits |
±0.05%rdg+3digits |
±0.05%rdg+3digits |
| |
<
60V |
±0.05%rdg+4digits |
±0.05%rdg+4digits |
±0.05%rdg+4digits |
| Current |
<
3.5A |
±0.1%rdg+5digits |
±0.1%rdg+5digits |
±0.1%rdg+5digits |
| |
<
5A |
±0.1%rdg+5digits |
±0.1%rdg+5digits |
±0.1%rdg+5digits |
| |
<
10A |
±0.3%rdg+10digits |
±0.3%rdg+10digits |
±0.3%rdg+10digits |
|
| READBACK(METER) RESOLUTION
|
Voltage |
As Resolution |
As Resolution |
As Resolution |
| Current |
As Resolution |
As Resolution |
As Resolution |
|
| READBACK(METER)
ACCURACY |
Voltage |
As Program Resolution |
As Program Resolution |
As Program Resolution |
| Current |
As Program Resolution |
As Program Resolution |
As Program Resolution |
|
| PROTECTION |
OVP/OCP/OPP |
YES
|
YES
|
YES
|
|
| OUTPUT ON/OFF CONTROL
|
|
YES
|
YES
|
YES
|
|
| DISPLAY |
|
LCD
|
LCD
|
LCD
|
|
| INTERFACE (STANDARD)
|
|
RS-232C
|
RS-232C
|
RS-232C
|
|
| POWER SOURCE |
AC 1150V/230V±15%, 50/60Hz |
|
| ACCESSORIES |
Instruction manual x1,
Power cord x1,
Test
lead GTL-104 x1 |
|
| DIMENSIONS &
WEIGHT |
225(W) x 100(H) x 305(D) mm ; Approx.
4kg |
|
