P Series Student Microscope

Features:
§
Metal construction body ensures many years use for students
§
All models come with three achromatic objectives 4X, 10X, 40XS except model P-1A. The model P-1A with fixed objectives
§
Triple nosepiece can change objectives at any time for viewing
§
Rack and pinion focusing adjustment with slip clutch mechanism, avoid breaking slides and objectives by careless or overpowered turning
§
Disc diaphragm with five-aperture, it is easy to adjust illumination for viewing
§
Arm of these biological microscope can incline up to 45°, adjust angle at random to observe comfortably.
§
The model P-3A equip wide field eyepiece-WF10X16mm, and mount cross plate for demand.

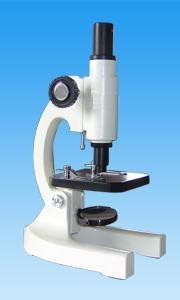

P-1A

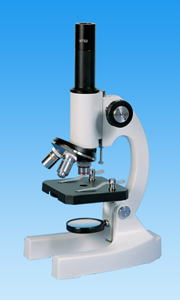

P-2A | P-3A

Specification:

Model
P-1A P-2A P-3A
Total Magnification
100X 200X 400X
Eyepiece
Huygens H10X Huygens H5X WF10X16mm
Achromatic objectives
10X 4X, 10X, 40XS
Mechanical tube length
136mm
Coarse focus range
21mm
Mechanical stages size
88 x 84mm
Illumination
Ø42mm plano and concave mirror
Condenser
No 0.65 N.A. condenser
Accessories Huygens eyepiece H5X,H6X,H10X,H12.5X,H15X,H16X and wide field eyepiece WF10X...

Standard specifications and accessories
