§ Viewing head: Upright binocular head, Diopter adjustment of range ±5mm,
And the nter-pupillary adjustable betwwen 55-75mm.
|
|
§ Eyepiece: Wide field
eyepiece-WF10X20mm.
|
|
§ Objective: Long working distance objective
2x, slide in type, 1X and 3.5X to option.
|
|
§ Working Arm:Mounted on adjustable long arm of 257mm total; horizontal
length and 292mm height from the upper surface
|
|
§ llumination:Built-in illumination system as 230V/10W(12V/10W tungsten
bulb) (CE and GS approved) or 115V/10W(12V/10W tungsten bulb.), Halogen
bulb 12V/10W to option.
|
|
§ Illuminate type: The incident light mounted on a ball-joint offers illumination
form different direction.
|
|
|

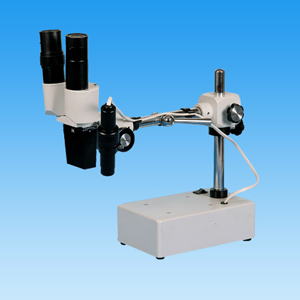

ST-50A
|
 |
|
§ Viewing head: 45° inclined binocular head, Diopter adjustment of range
±5mm, And the inter-pupillary adjustable betwwen 55-75mm.
|
|
§ Eyepiece: Wide field
eyepiece-WF10X20mm.
|
|
§ Objective: Long working distance objective
2x, slide in type, 1X and 3.5X to option.
|
|
§ Working Arm:Mounted on adjustable long arm of 257mm total; horizontal
length and 292mm height from the upper surface
|
|
§ llumination:Built-in illumination system as 230V/10W(12V/10W tungsten
bulb) (CE and GS approved) or 115V/10W(12V/10W tungsten bulb.), Halogen
bulb 12V/10W to option.
|
|
§ Illuminate type: The incident light mounted on a ball-joint offers illumination
form different direction.
|
|
|

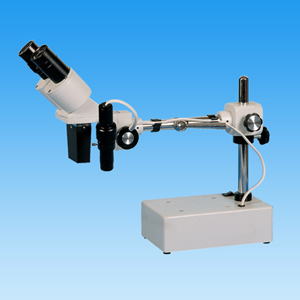

ST-50B
|
Specification:
| Model |
ST-50A |
ST-50B |
| Magnification |
20X(70X) |
|
Eyepiece
|
Wide field
eyepiece-WF10X20mm |
|
Objective
|
Long
working distance objective 2X, slide in type |
| Viewing
Head |
Upright binocular
head |
45° inclined binocular head |
| Arm
length |
292mm |
| Arm
Height |
257mm |
| Illumination |
Built-in
illumination system as 230V/10W(12V/10W tungsten bulb) (CE and GS approved) or
115V/10W(12V/10W tungsten bulb.), Halogen bulb 12V/10W to
choose.
|
| Accessories |
Multifarious eyepiece, objective, Dark filed and Gem clamp...
|
|
