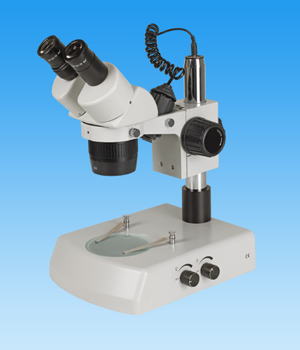

Viewing head: 45° inclined, 360° rotatable binocular head ; The
inter-pupillary distance adjustable between 55-75mm; diopter adjustment of range ±5mm.
|
|
§
Eyepiece: Wide field, high-eyepoint eyepice, It can observe image of observation
specimen with glasses.
|
§ Objective: Turret objective 2X/4X, 1X/2X and
1X/3X for option
|
|
§
Magnification range: between
5X-160X.
|
|
§
Working distrance: 100mm, special maximum working distance can provide
more working space for you.
|
|
§
Illumination: Built-in and
built-out illumination system.
|
§ Focusing: Two focusing knobs also used for tension adjustment, slide range
49mm.
|
| § Accessories: There are many accessories to
choose. |
|
|
ST6024-B2
|
 |
§ Viewing head: 45° inclined, 360° rotatable
binocular head or
trinocular head with Photo port.
|
§ Eyepiece: Wide field, high-eyepoint
eyepiece-WF10X20mm.
|
| § Objective:Turret objective
2X/4X |
§ Magnification range: 10X-80X or 5X-160X with
auxiliary
|
§ Inter-Pupillay distance:
55-75mm
|
| § Diopter range:
±5mm |
|
 |
|
ST6013TR
(trinocular head)
|
ST6013
(binocular head) |
 |
§ Plane focus arm, focused by rack and pinion
w/ball bearing guide.
|
§ Pillar size: ¢32mm
|
§ Drawtube size: ¢76mm
|
§ Disinged for use with SZMST1 , or SZMST2 or
SZMST3 or SZ-STL1 or SZ-STL2
|
| § With a mounting hole for epi-illuminator
SZM-L1 |
|
|
SZMA1(Focus arm)
|
 |
§ Plane focus arm, focused by rack and pinion
w/ball bearing guide.
|
§ Pillar size: ¢24.5mm
|
| § Drawtube size:
¢76mm |
|
|
SZA2
(industry bind focus arm)
|
 |
§ With bind institution of
industry.
|
§ Plane focus arm, focused by rack and pinion
w/ball bearing guide.
|
§ To view object in any
angle.
|
§ Drawtube size: ¢76mm.
|
| § Join size:
¢16mm. |
|
|
SZA3
(industry bind focus arm)
|
Objective optics parameter
| Model |
Magnification |
Eyepiece |
Working distance |
| SZMEWh10X20 |
SZMEWh15X15 |
SZMEWh20X10 |
| ST6012 |
1X |
10X20mm |
15X15mm |
20X10mm |
100mm |
| 2X |
10X20mm |
30X7.5mm |
40X5mm |
| ST6013 |
1X |
10X20mm |
15X15mm |
20X10mm |
| 3X |
30X6.7mm |
45X5mm |
60X3.3mm |
| ST6024 |
2X |
10X20mm |
30X7.5mm |
40X5mm |
| 4X |
40X5mm |
60X3.75mm |
80X2.5mm |
|
