§ Viewing head: 45° inclined, 360° rotatable
binocular head or rinocular head. The inter-pupillary distance adjustable between 54-75mm; both diopter adjustment of range ±5mm.
|
|
§ Eyepiece: Wide field, high-eyepoint eyepice, It can observe image of observation
specimen with glasses.
|
§ Objective: Zoom objective magnification
0.70X-4.5X.
|
|
§ Magnification range: between
3.5X-180X.
|
|
§ Working distrance: 100mm, special maximum
working distance can provide more working space for
you
|
|
§ Illumination: Built-in and built-out
illumination system.
|
| § Accessories: There are many accessories to
choose. |
|
|

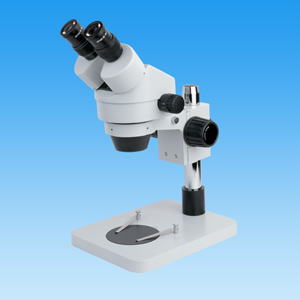

SZM-45B1
|
 |
§ Viewing head: 45° inclined, 360° rotatable
binocular head or trinocular head with Photo port
|
§ Eyepiece: WF10X20mm,Wide field, high-eyepoint eyepiece
|
§ Objective:Zoom objective magnification
0.70X-4.5X.
|
§ Magnification: 7X-90X or 3.5X-180X with
auxiliary
|
§ Inter-Pupillay distance:
55-75mm
|
| § Diopter range:
±5mm |
|
 |
|
SZM7045(binocular head)
|
SZM7045TR
(trinocular head) |
 |
§ Plane focus arm, focused by rack and pinion
w/ball bearing guide.
|
§ Pillar size: ¢32mm
|
§ Drawtube size: ¢76mm
|
§ Disinged for use with SZMST1 , or SZMST2 or
SZMST3 or SZ-STL1 or SZ-STL2
|
| § With a mounting hole for epi-illuminator
SZM-L1 |
|
|
SZMA1(Focus arm)
|
 |
§ Plane focus arm, focused by rack and pinion
w/ball bearing guide.
|
§ Pillar size: ¢24.5mm
|
| § Drawtube size:
¢76mm |
|
|
SZA2
(industry bind focus arm)
|
 |
§ With bind institution of
industry.
|
§ Plane focus arm, focused by rack and pinion
w/ball bearing guide.
|
§ To view object in any
angle.
|
§ Drawtube size: ¢76mm.
|
| § Join size:
¢16mm. |
|
|
SZA3
(industry bind focus arm)
|
Specification
| Eyepiece |
Standard
specification |
Auxiliary
objective 0.5X |
Auxiliary
objective 1.5X |
Auxiliary
objective 2X |
| Working distance 100mm |
Working distance 165mm |
Working distance 45mm |
Working distance 30mm |
| Magnification |
View field |
Magnification |
View
field |
Magnification |
View
field |
Magnification |
View
field |
| 10X/20mm |
7.0X |
28.6mm |
3.5X |
57.1mm |
10.5X |
19mm |
14X |
14.3mm |
| |
45.0X |
4.4mm |
22.5X |
8.9mm |
67.5X |
3mm |
90X |
2.2mm |
| 15X/15mm |
10.5X |
21.1mm |
5.25X |
42.8mm |
15.75X |
14.3mm |
21X |
10.7mm |
| |
67.5X |
3.3mm |
33.75X |
6.7mm |
101.25X |
2.2mm |
135X |
1.7mm |
| 20X/10mm |
14.0X |
14.3mm |
7.0X |
28.6mm |
21.0X |
9.5mm |
28X |
7.1mm |
| |
90.0X |
2.2mm |
45.0X |
4.4mm |
135.0X |
1.5mm |
180X |
1.1mm |
|
