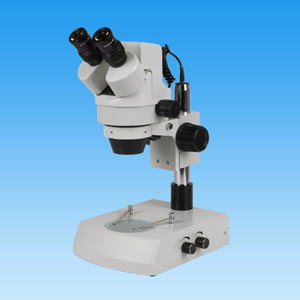

DMSZM Digital Stereo Microscopes


§ Inherit all function from SZM series microscope.
§  Support scanner and digital still camera (TWAIN Standard).
§  Viewing head :45° inclined,360° rotatable binocular head.
§  Eyepiece: Wide filed, high-eyepoint eyepiece-WF10X20mm.
§  Objective: Zoom objective magnification 0.70X-4.5X.
§  Signal :1) Analog: RCA,S-Video signal wire
  2) Digital: USB data line,RCA, S-Video signal wire.
§  Working distance: 100mm.
§  Magnification range: 7X-45X or 3.5X-180X (Use auxiliary objective)
§  Inter-pupillary rang: 55-76mm.
§  Both diopter range: ±5mm.
DMSZM


Video Port:
    DMSZM digital microscope are provided with USB C-VIDEO and S-VIDEO port, Video out signals provided with analog signals digital signals or two signals at the same time.

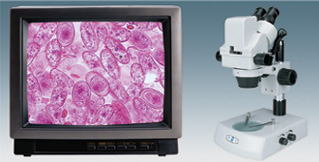

Analog signals Out:

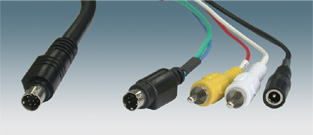

    1) Plug one end of the PAV cable into the scoket of the video head.
    2) Plug the C-VIDEO or S-VIDEO of the PAV cable into the correct socket of monitor or TV.
    3) Connect the 12V DC power to the power socket of the PAV cable.

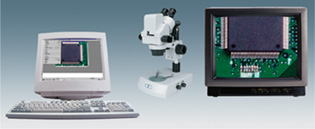

Digital signals out:
    1)  Plug one end of the PAV cable into Video head.
    2)  Plug one of the C-VIDEO or S-VIDEO into the A/D board.
    3)  Plug the USB of the A/D board into the USB socket of the computer.
    4)  Connect 12V DC power to the power socket of the PAV cable.
    5)  Open the Photolib soft to start your work efficiently.

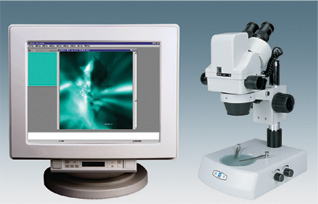

Synchronize two signals
    You can connect the Video head to the Monitor or TV and the computer at the same time easy.

Specification:

Index NTSC PAL
Pick-up Device 1/3¨ 1/3¨
Horizontal resolution 450 TV line 450 TV line
Pixels (H)768 * (V)494 (H)712 * (V)582
Scanning system 525lines, 60field/second 625lines, 50field/second
White balance Auto white balance and hand white balance
Back light compensation Auto
Signal/Noise ratio more than 46db
Gamma characteristic 0.45
Minimum illumination 3 lux
Input voltage 12V DC(9V~14V)
Power consumption 1.85W or less
