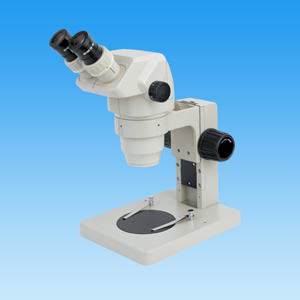

SZ Series Zoom Stereo Microscopes

§ Viewing head: 45° or 60° inclined, 360° rotatable binocular head or trinocular head . The inter-pupillary distance adjustable between 54-75mm; both diopter adjustment of range ±5mm.
§ Eyepiece: Wide field, high-eyepoint eyepice, It can observe image of observation specimen with glasses.
§  Objective: Zoom objective magnification 0.67X-4.5X.
§ Magnification range: between 5X-160X.
§ Working distrance: 100mm, special maximum working distance can provide more working space for you
§ Illumination: Built-in and built-out illumination system.
§  Accessories: There are many accessories to choose.
SZ-45B1

Head:
 § Viewing head: 45° or 60° inclined, 360° rotatable binocular head or trinocular head with Photo port.
 § Eyepiece: WF10X22mm,Wide field, high-eyepoint eyepiece
 § Objective:Zoom objective magnification 0.67X-4.5X.
 § Magnification: 6.7X-90X or 2X-225X with auxiliary
 § Inter-Pupillay distance: 55-75mm
 § Diopter range: ±5mm
SZ6745
(binocular head)
SZ6745TR
(trinocular head)

Head:
 § Viewing head: 45° or 60° inclined, 360° rotatable binocular head or trinocular head with Photo port.
 § Eyepiece: WF10X22mm,Wide field, high-eyepoint eyepiece
 § Objective:Zoom objective magnification 0.90X-4.0X.
 § Magnification: 9X-80X or 3X-200X with auxiliary
 § Inter-Pupillay distance: 55-75mm
 § Diopter range: ±5mm
SZ9040
(binocular head)
SZ9040TR
(trinocular head)

Focus arm:

  § Plane focus arm, focused by rack and pinion w/ball bearing guide.
  § Pillar size: Ø32mm
  § Drawtube size: Ø76mm
  § Disinged for use with SZ-ST2 , or SZ-ST3 or SZ-STL1 or SZ-STL2
  § With a mounting hole for epi-illuminator SZ-L1
SZA1(Focus arm)

Industry bind focus arm:

  § Plane focus arm, focused by rack and pinion w/ball bearing guide.
  § Pillar size: Ø24.5mm
  § Drawtube size: Ø76mm
SZA2
(industry bind focus arm)

Industry bind focus arm:

  § With bind institution of industry.
  § Plane focus arm, focused by rack and pinion w/ball bearing guide.
  § To view object in any angle.
  § Drawtube size: Ø76mm.
  § Join size: Ø16mm.
SZA3
(industry bind focus arm)

SZ9040 Series optics parameter:

Zoom magnification Eyepiece Working distance
SEWh10X22 SEWh15X16 SEWh20X12
Total
magnitication
View field(mm) Total
magnitication
View field(mm) Total
magnitication
View field(mm)
0.9X 9X 24.4 13.5X 17.8 18X 13.3 100mm
1X 10X 22.0 15X 16.0 20X 12.0
1.5X 15X 14.7 22.5X 10.7 30X 8.0
2X 20X 11.0 30X 8.0 40X 6.0
3X 30X 7.3 45X 5.3 60X 4.0
4X 40X 5.5 60X 4.0 80X 3.0

SZ6745 Series optics parameter:

oom magnification Eyepiece Working distance
SEWh10X22 SEWh15X16 SEWh20X12
Total
magnitication
View field(mm) Total
magnitication
View field(mm) Total
magnitication
View field(mm)
0.67X 6.7X 23.8 10.0X 23.9 13.4X 17.9 100mm
0.70X 7.0X 31.4 10.5X 22.9 14.0X 17.1
0.80X 8.0X 27.5 12.0X 20.0 16.0X 15.0
1.00X 10.0X 22.0 15.0X 16.0 20.0X 12.0
1.50X 15.0X 14.7 22.5X 10.7 30.0X 8.0
2.00X 20.0X 11.0 30.0X 8.0 40.0X 6.0
3.00X 30.0X 7.3 45.0X 5.3 60.0X 4.0
4.00X 40.0X 5.5 60.0X 4.0 80.0X 3.0
4.50X 45.0X 4.9 67.5X 3.6 90.0X 2.7

Auxiliary optics parameter:

Auxiliar objective magnification Working distance(mm) Auxiliar objective magnification Working distance(mm)
SAO0.3 0.3X 287 SAO0.75 0.75X 117
SAO0.4 0.4X 217 SAO1.50 1.5X 47
SAO0.5 0.5X 177 SAO2 2X 26
