Slit Lamp


Price: $2495.00

Special order, please contact

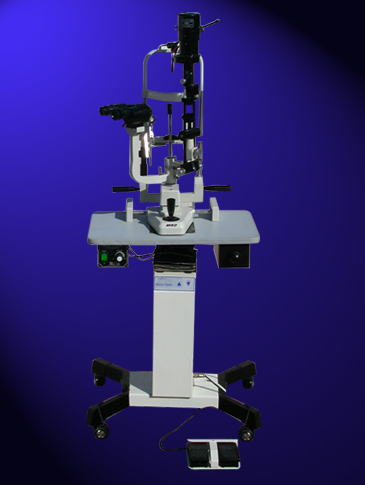

This instrument consists a microscope with a light attached that allows the doctor to examine eyes under high magnification. It is primarily used to view the anterior structures of the eye such as the cornea, iris, and lens. However, with special lenses, it is possible to examine the vitreous and the back of the eye as well.


 Specifications
Microscope
Miko Zoom
Magnification Type Continuous Zoom
Eye Piece 15x
Magnification 8x - 32x
Real field of view 28mm - 7mm
PD range 52 - 75mm
Diopter adjustment 5
Working distance 105mm
Slith width 0 - 12mm
Slit length 0 - 12mm
Slit aperatures 0.2, 2, 3, 4, 6, 8, 12mm
Slit angles 0- 180
Slit Inclinaton Horizontal in steps of 0, 5, 10, 15
Vertical in steps of 0, 5, 10, 15, 20
Slit illumination 6V - 30W
Filters Cobalt blue, Neutral Density
Heat absorbing, Red Free
Movement Ranges
Type Co-axial with joystick control
Longitudinal 120 mm (In/Out)
Lateral 100 mm (Left/Right)
Vertical 30 mm (Up/Down)
Chin Rest 80 mm (UP/Down)
Power Supply 110 or 40V
Table Dimensions 520 mm x 340 mm
Weight (Packed) 23 Kgs
