TPR Series Linear Regulated DC Power Supplies
Specifications:
- Constant voltage mode:
- Voltage from 0V to max. continuously adjustable
- Output and load stability: ≤0.01%+2mV(current<3A)
- Output and load stability: ≤0.01%+5mV(current>3A)
- Restore time≤100μS (5Hz~1MHz, current ≤3A)
- Ripple and noise:≤0.5mVrms(5Hz~1MHz)
- Temperature effect≤300ppm/°C
- Constant current mode:
- Current from 0A to max. continuously adjustable
- Output and load stability: ≤0.2%+2mA
- Ripple and noise:≤2mArms
- Power: 110V±10% 60Hz
- Working environment: -10°C~40°C, humidity<80%
Please refer to TPR3000 manual for more details.
|
 |

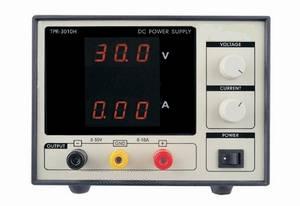

TPR3010H
30V, 10A
$248
 |
 |

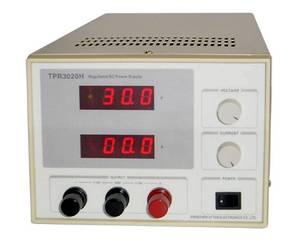

TPR3020H
30V, 20A
$296
 |
 |
TPR3030H
30V, 30A
$445
 |
 |
TPR6005
60V, 5A
$252
 |
|
