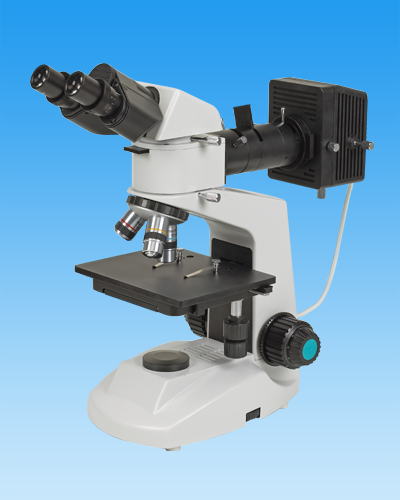

Specifications:
Optical |
Critical illumination system
|
Head |
Monocular head, 45°inclined,Gemel type of binocular head, 30°
inclined,Gemel type of trinocular head, 30° inclined.)
|
Eyepiece |
PL10X high eye-point plan eyepiece
|
Nosepiece |
Triple or quadruple nosepiece, setting accuracy
0.03mm
|
Objective |
195 Common achromatic metallurgical objective(4X/10X)
195 Plan achromatic metallurgical objective(4X/10X/20X/40X/60X)
|
Focus |
Coaxial focus system with tension adjustment, with up-limited
coarse focus, Stage range 25mm, precision 0.002mm.
|
Stage |
Rectangular and mobile mechanical stage with low coaxial
adjusting (right and left hand for option), area: 140x132mm(accompanying 180 x
145mm stage), working distance: 75x50mm.
|
Illuminator |
Adopted 90-240V voltage, Koehler illuminator systems, the 6V/30W
Halogen bulb, adjustable filament center, adjustable brightness, build-in field
diaphragm and aperture diaphragm. Polarizer device for option, adjusting range:
plusminusą25°
|
|
