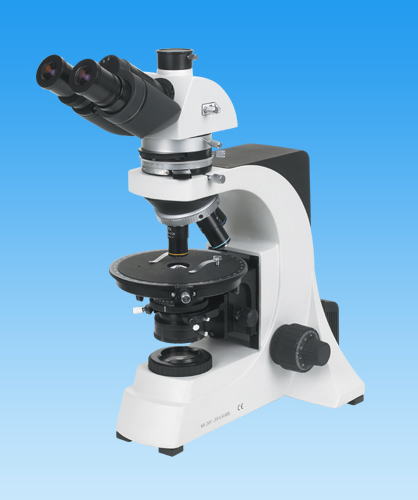

XY-P Series Polarizing Microscope






The XY-P series polarizing biological microscopes is incorporated with excellent optical systems and dependable manipulation. They are widely used in analyzing and appraising various mineral samples.
Features:

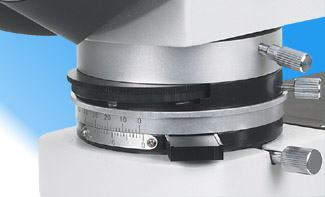

  *Midist head :rotate range: 90°, A dose value of vernier 6', can shift out the optical path, Bretrand lens diverter and focusing handwheel, center adjustment.

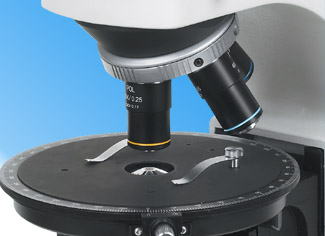

  *Nosepiece:quadruple nosepiece completed with infinity plan distressing objective lenses (4X,10X,20X,40X,100X), the objective center is consistant with the rotation worktable center.

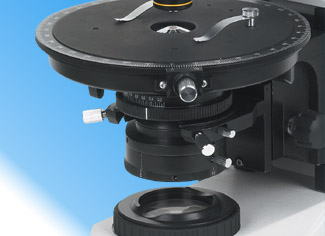

  *Rotation stage:360°; locking apparatus; a dose value of vernier 6'.
  *Illumination: 6V/30W halogen bulb (Philips5761) koehler illuminator system.
Comes with NA1.2/0.22 swing type achromatic condenser, 90V~240V AC, brightness adjustment.
  *Polarizer: 60°(0°/90°/180°/270° four graduations) rotation vibration, locking apparatus, can shift out the optical path.

Specifications:
Part
Specification
Eyepiece
PL10X22mm flat-field, with eye-protector
PL10X22mm plan eyepiece with reticule
PL10X22mm plan eyepiece with reseau
PL15X16mm plan eyepiece
Nosepiece completed with infinity plan distressing objective
4xS
10xS
20xS
40xS
60xS
100xS
Head

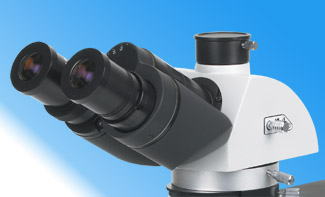

Gamely type of binocular head,30° inclined
Gamely type of trinocular head, 30° inclined
30°~60° high efficiency binocular eyepiece
Midist head
Build-in analyzer and Bretrand lens
Compensator
λ plate (f18mm, first-order red, light path aberration: 551nm)
λ/4 plate (f18mm, light path aberration: 147.3nm)
Quartzose chock (12x28mm, I-IV)
Nosepiece:
Quadruple nosepiece
Quintuple nosepiece
Body
Coaxial focus system with Coarse and fine adjustment
Rotatable circular worktable
360° rotation circular worktable, A dose value of mark 1, A dose value of vernier 6'
Slice
Plugtype
Floating ruler
Floating range: 40x30mm
Condenser
NA1.2/0.22 swing achromatic condenser
Polarizer
360° rotation vibration, can shift out the optical path
Micrometer ruler
0.01mm
Color filters
Yellow color filter
Green color filter
Blue color filter
Neutral color filter
Camera setting
Camera connector (PK joint)
3.2x camera eyepiece
Video camera setting
0.5x video camera eyepiece (C joint)
0.35x video camera eyepiece (C joint)
Illumination
90V~240V fluctuate of voltage 6V/30W halogen bulb, brightness adjustment.
XY-P Series polarizing microscopes' accessories and price
Specification
Model
Parts
Description
Part No.
XY-P1
XY-P2
Eyepiece
PL10x22mm(Φ30) with eyes-cap
XY-PL10
O O
PL10x22mm(Φ30) with cross reticle
 XY-PL10r  O O
PL15x16mm(Φ30) with eyes-cap
XY-PL15
Plan Object
Plan stress-relieved achromatic 4X
XY-PSO4
O O
Plan stress-relieved achromatic 10X
 XY-PSO10  O O
Plan stress-relieved achromatic 20X
 XY-PSO20
Plan stress-relieved achromatic 40XR
XY-PSO40
O O
Plan stress-relieved achromatic 60XR
 XY-PSO60  O O
Plan stress-relieved achromatic 100XR
 XY-IPO100
Head
30° gemel type binocular head
XY-BH1
O
30° gemel type trinocular head
XY-TH2
O
Middle-tube
Inner Correcting Polarizer lens.
Inner Bertrand lens
XY-MTL
O
O
Compensator
λ plate(18mm, first order red)
 XY-λP  O O
λ /4 plate(18mm)
 XY-ΛP2  O  O
Quarz wedge(1-1V, 12X28mm)
 XY-QW  O O
Nosepiece
Reversed quintuple nosepiece
XY-NP15
Reversed quintuple nosepiece
XY-NP14
O
O
Stand
XY-FS
O
O
Stage
360° Revolving stage
XY-RS
O
O
Condenser
N.A.1.25 swing achromatic condenser
XY-SAC
O
O
Filter
Blue filter
XY-BF
O
O
Polarizer lens
360° Revolving, removing-out light
XY-PL
O
O
Precision ruler
0.01mm
XY-PR
O
O
Photo tube
Photo tube with PK mount
XY-PT
3.2X photo eyepiece
XY-PE3.2
0.5X focus lens
XY-FL0.5
0.35X focus lens
XY-FL0.35
Package
Styrofoma + carton
XY-SC
O
O
Total
$2486.00
$2524.00
