XY Series specification
|
|
Specification
|
Model
|
||
|
Parts
|
Description
|
XY-B1
|
XY-B2
|
|
EyepieceØ30
|
PL10X/22mm high eye-point plan eyepieceeach with eye-cap |
O
|
O
|
| PL10X high eye-point plan eyepiece with reticle | |||
| PL15X/16mm high eye-point plan eyepiece | |||
|
plan achromatic
Objective
|
infinity plan achromatic objective 4X |
O
|
O
|
| infinity plan achromatic objective 10X |
O
|
O
|
|
| infinity plan achromatic objective 20X |
O
|
O
|
|
| infinity plan achromatic objective 40X |
O
|
O
|
|
| infinity plan achromatic objective 100X |
O
|
O
|
|
|
plan phase contrast
objective
|
infinity plan phase contrast objective 10X | ||
| infinity plan phase contrast objective 20X | |||
| infinity plan phase contrast objective 40X | |||
| infinity plan phase contrast objective 100X | |||
|
Head
|
Gemel type of binocular head,30° inclined |
O
|
/
|
| Gemel type of trinocular head, 30° inclined |
/
|
O
|
|
| Gemel type of binocular head, 30° ~60° inclined(Designing) | |||
|
Nosepiece
|
Reversed quintuple nosepiece |
O
|
O
|
|
Arm
|
Lowness coaxial focus system |
O
|
O
|
|
Stage
|
175*145mm mechanical stage,adjusting for right hand |
O
|
O
|
| 175*145mm mechanical stage,adjusting for left hand | |||
|
Condenser
|
NA1.2/0.22 swing achromatic conderser |
O
|
O
|

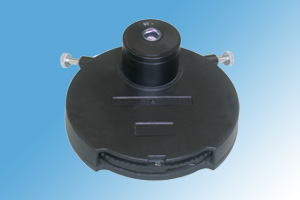

| NA1.25 file position phase contrast condenser | |||
| Phase contrast condenser 10X | |||
| Phase contrast condenser 20X | |||
| Phase contrast condenser 40X | |||
| Phase contrast condenser 100X | |||
|
Illuminator
|
90V~240V/6V 30W halogen bulb |
O
|
O
|
|
Filter
|
yellow filter (Ø45) | ||
| green filter (Ø45) | |||
| blue filter (Ø45) | |||
| filter without color(Ø45) | |||
|
tube
|
PK mount adapter | ||
| 3.2X photo eyepiece | |||
|
TV
adapter
|
0.5X C-mount TV adapter with focusable lens | ||
| 0.35X C-mount TV adapter with focusable lens | |||
|
Darkfiled Condenser
|
dry darkfiled condenser NA0.9 | ||
| Wet darkfiled condenser NA1.25 | |||
|
Polarizing kits
|
Polarizer (Ø45) | ||
| Polarizer wave slip | |||
| wave slip | |||
| Rotatable circular mechanical stage | |||
| XY Series Primary Accessories |
 |
|
||||||||||||||
 |
