Educational Microscope Solution
Price List

Performance power with 3 illumination systems, precision mechanical modules and high performance optics, CXE is an educational microscope designed to enhance operational convenience by combining innovative design and high quality optics. Simplified operations and superb EP series optics create a compound microscope of great performance and versatility.

Specifications
STAND

Stable Stand with convenient location of focus controls



STAGE

Stage plate size 125 x 120mm

ILLUMINATION
Available in various illumination options including 5W Fluorescent Tube, 10W Halogen bulb with intensity control and LED with 9V batteries or Reflector mirror base.
FOCUSING SYSTEM
Co-axial coarse and fine focusing mechanism system on ball bearing guide-ways. Tension adjustment ring and auto focus provided.
VIEWING TUBE

Monocular tube inclined at 45°.

OBJECTIVES

EP series Semi Plan Achromatic 4X, 10X and 40X (SL)

CONDENSER

Sub-stage disc diaphragm N.A. 0.65

EYEPIECES

WF 10x(FN18) with eyeguard and pointer.

ACCESSORIES

Mechanical Stage, Cord hanger Kit, 100x (SL,Oil) objective.


CXE Series CE List Price
Part NO. Compound Microscope (Elementary Education) USD
5121090 Monocular tube, 45?inclined, 360? rotatable
Wide Field eyepiece WF 10x/18mm, with pointer and eye guard
Quadruple Nosepiece (Ball bearing type)
EP series DIN, Semi Plan Achromatic objectives 4x, 10x, 40x (SL)
Stage plate size 125 x 120mm
Sub-stage disc diaphragm with condenser NA 0.65
Co-axial coarse and fine focusing mechanism with tension control
Illumination system 6V/10W Halogen with intensity regulator.
Power Input 10V AC
Packed in moulded styrofoam box, with operation manual, allen wrench,
dust cover and cleaning cloth
240.00
5121045 Same as 5121090 but with 6V/10W Halogan with 220V input 260.00
5121054 Same as 5121090 but with 5W CFL cool light with 110V AC input 260.00
5121055 Same as 5121090 but with 5W CFL cool light with 220V AC input 260.00
5121063 Same as 5121090 but with LED and with 9V battery (Cordless version) 290.00
5121081 Same as 5121090 but with 12V/20W Halogan with Universal Power Supply (110-240V) 270.00
5121072 Same as 5121090 but with Reflector mirror at base for illumination 220.00
Optional Accessories & Spares
3120012 10x/18mm wide field eyepiece with pointer and eye guard 44.00
512086-600 Mechanical Stage 24.00
512086-170 Cord Hanger Kit 10.00
5121012 Mono Observation Head 44.00
5122005 EP series DIN 4x Semi Plan Achromat Objective 18.00
5122010 EP series DIN 10x Semi Plan Achromat Objective 22.00
5122040 EP series DIN 40x (SL) Semi Plan Archromat Objective 30.00
5122100 EP series 100x (SL, Oil) Semi Plan Archromat Objective 44.00
ST-406 5W CFL (Compact Fluorescent Lamp) 8.00
ARF-003 Mirror attachment for Daylight illumination 10.00
EL-502 Halogan Bulb 6V/10W 8.00
312086-112 Halogan Bulb 12V/20W 8.00
512086-703 White LED 6.00
PK-030 Lens Cleaning Tissue (Box of 100 Tissue papers) 2.00
PK-035 Immersion Oil 10ml 6.00
EL-445 Fuse 1.0 Amp 2.00
312086-118 Fuse 2.5 Amp 2.00
PKC-015 Soft Carrying Case (Inner Dimemsions 16'' x 13'' x 10'') 80.00
PKC-020 Dust Cover 6.00

CXL Lab Microscope Solution
Price List

Highest mechanical precision and optical performance is available on CXL Microscope system. CXL gives you superior performance, comfort and unsurpassed quality. Whether for classroom or routine laboratory work, the new CXL microscope with its pre-configured systems provides selection for the entire application spectrum. Its outstanding features include LP series optics with very high correction for chromatic errors, which provide sharp and well-defined images.

Specifications
STAND

Stable stand with convenient location of controls.



VIEWING BODIES

Monocular, Binocular or Dual tube inclined at 45° .

MECHANICAL STAGE

Size 135mm X 125mm with ¡°soft feel¡± low drive coaxial control.

CONDENSER

Sub-stage ABBE-type condenser with aspheric lens N.A. 1.25 on rack and pinion movement.

FOCUSING SYSTEM

Co-axial coarse and fine focussing mechanism system on ball bearing guideways. Tension adjustment ring and auto focus provided.

ILLUMINATION

12V 20W Halogen Lamp with Universal Power Supply (110V-240V).

OBJECTIVES

LP series 4X, 10X, 40X (SL) and 100X (SL, Oil) Semi Plan Achromatic objectives.

EYEPIECES

WF 10X (FN 18) with eyeguard. Optional 15x (FN 16mm).

ACCESSORIES

Polarizing Kit, Simple Phase Contrast Kit, 1/2" Video Adapter for use with Dual Tube, Cord Hanger Kit


5121036 5121009 5121000

CXL Series CE List Price
Part NO. Compound Microscope (High School Education) USD
5121036 Sturdy stand with plastic hand rests
Monocular tube, 45?inclined, 360?rotatable

Wide Field eyepiece WF 10x/18mm with pointer and eye guard
Quadruple Nosepiece (Ball bearing type)
LP series DIN, Semi Plan Achromatic objectives 4x, 10x, 40x (SL)
Stage rectangular size 135 x 124mm with mechanical stage cross
travel 75 x 50mm on ball bearing with co-axial control
Sub-stage ABBE condenser NA 1.25 with aspheric lens. Iris diaphragm
and special day light blue filter
Co-axial coarse and fine focusing mechanism with tension control
Illumination system 12V-20W Halogen with intensity control.
Universal power supply (110V-240V) as per UL, CE standards
Packed in moulded styrofoam box, with operation manual, allen wrench,
dust cover and cleaning cloth
316.00
5121027 Same as 5121036 but with additional 100 x spring loaded oil immersion objective 356.00
5121009 Sturdy stand with plastic hand rests
Dual View Mono tube, 45?inclined, 360?rotatable

Wide Field eyepiece WF 10x/18mm with pointer and eye guard
Quadruple Nosepiece (Ball bearing type)
LP series DIN, Semi Plan Achromatic objectives 4x, 10x, 40x (SL), 100x (SL,Oil)
Stage rectangular size 135 x 124mm with mechanical stage cross
travel 75 x 50mm on ball bearing with co-axial control
Sub-stage ABBE condenser NA 1.25 with aspheric lens. Iris diaphragm
and special day light blue filter
Co-axial coarse and fine focusing mechanism with tension control
Illumination system 12V-20W Halogen with intensity control.
Universal power supply (110V-240V) as per UL, CE standards
Packed in moulded styrofoam box, with operation manual, allen wrench,
dust cover and cleaning cloth
430.00
5121000 Sturdy stand with plastic hand rests
Binocular tube, 45?inclined, 360?rotatable, IPD-52-74mm

Wide Field eyepiece WF 10x/18mm paired with eye guards
Quadruple Nosepiece (Ball bearing type)
LP series DIN, Semi Plan Achromatic objectives 4x, 10x, 40x (SL), 100x (SL,Oil)
Stage rectangular size 135 x 124mm with mechanical stage cross
travel 75 x 50mm on ball bearing with co-axial control
Sub-stage ABBE condenser NA 1.25 with aspheric lens. Iris diaphragm
and special day light blue filter
Co-axial coarse and fine focusing mechanism with tension control
Illumination system 12V-20W Halogen with intensity control.
Universal power supply (110V-240V) as per UL, CE standards
Packed in moulded styrofoam box, with operation manual, allen wrench,
dust cover and cleaning cloth
516.00
Optional Accessories & Spares
3120010 10x/18mm wide field eyepiece with eye guard 42.00
3120012 10x/18mm wide field eyepiece with pointer and eye guard 44.00
3120015 15x/16mm wide field eyepiece with eye guard 42.00
5121005 LP series 4x Semi Plan Achromat objective 20.00
5121010 LP series 10x Semi Plan Achromat objective 24.00
5121040 LP series 40x (SL) Semi Plan Achromat objective 36.00
5121100 LP series 100x (SL,Oil) Semi Plan Achromat objective 44.00
3120013 Micrometer Eyepiece 10x/18mm (10mm/100 parts X-Y) 86.00
3126005 Phase Telescope 56.00
3123010 LP series 10x Phase Achromat objective 150.00
3123040 LP series 40x (SL) Phase Achromat objective 190.00
3126040 LP series 10x Phase Slider 28.00
3126045 LP series 40x Phase Slider 28.00
3126065 Green Filter 032.0mm, mounted 22.00
3126060 Blue Filter 032.0mm, mounted 10.00
ANM-002 Mechanical Stage, X/Y travel of 75mm x 50mm 34.00
5121035 Polarizing kit with simple polarizer and analyzer 66.00
3126000 Phase Kit comprising of Phase objective 10x and 40x, Phase slider 10x with BF stop, Phase
slider 40x with BF stops, Phase annulus centering tools, Phase Telescope and Green Filter
458.00
5121015 Video Adapter 1/2'' 154.00
512086-170 Cord Hanger Kit 10.00
5121030 Dual Mono Observation Head (without eyepiece and video adapter) 66.00
3126050 Brightfield/Darkfield slider 30.00
3124040 Abbe Condenser 24.00
5121012 Mono Observation Head, 45?inclined 44.00
5121020 Binocular Observation Head, 45?inclined 130.00
PK-030 Lens Cleaning Tissue (Box of 100 Tissue papers) 2.00
PK-035 Immersion Oil 10ml 6.00

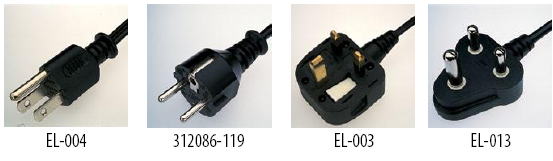

EL-004 Power Cord 110V with North American Plug (6 Ft.) 4.00
312086-119 Power Cord 220V with Schuko Plug (6 Ft.) 4.00
EL-003 Power Cord 220V with UK Plug (6 Ft.) 6.00
EL-013 Power Cord 220V with B5-546 Plug (Indian plug) (6 Ft.) 4.00
312086-118 Fuse 2.5 Amp 2.00
312086-112 Halogan Bulb 12V / 20W 8.00
PKC-020 Soft Carrying Case (Inner Dimemsions 16'' x 13'' x 10'') 80.00
PK-020 Dust Cover 6.00
