SZM Trinocular Microscopes

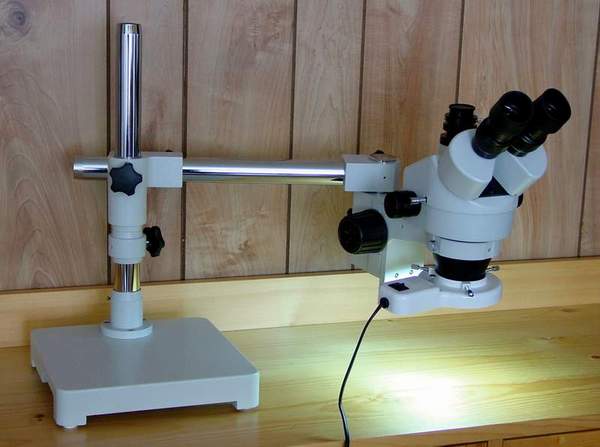

SZM7045TR Trinocular Microscope with Single Bar Boom Stand

List Price: $1,650.00
Sale Price: $525.00



High quality stereo trinocular microscope with Boom Stand. Great for working on PCB boards with fine pitch IC's and other applications.


l          Crystal sharp pictures. A necessary tool for SMT/SMD circuit boards inspection and other applications.

l          Continuous zoom from 7X to 45X. Optional object lenses of 0.5X and 2X available.

l          Adjustable rubber eye guards.

l          Video/camera trinocular port. Video and photo adapters optional. Matching high resolution color CCD video camera available.

l          Boom stand included for maximum versatility and extended working area. Great for working with large circuit boards.

l          Fluorescent ring light is included. Even and bright illumination onto the working area.

l          Heavy-duty quality metal construction with both of the microscope body and boom stand.

l          Easy focusing and zooming control knobs on both sides of the microscope.

l         One-year warranty.


User's manual.

Customers' response to our microscopes: "Wow", "Very impressed", "Great".

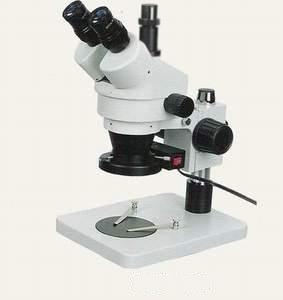

SZM7045TR Trinocular Microscope with ST1 Stand, Fluorescent Ring Light
Sale Price: $390.00

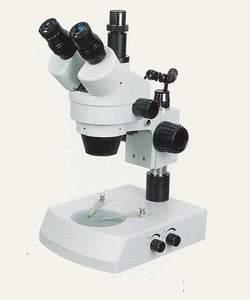

SZM7045TR Trinocular Microscope with ST2 Stand, Fluorescent Ring Light
Sale Price: $450.00

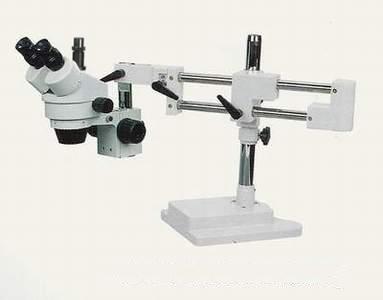

SZM7045TR Trinocular Microscope with Double Bar Boom Stand, Fluorescent Ring Light
Sale Price: $590.00

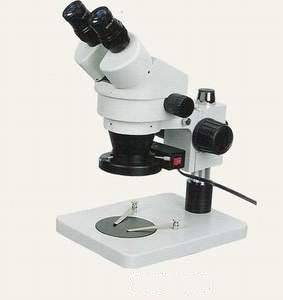

SZM7045 Binocular Microscope with ST1 Stand, Fluorescent Ring Light
Sale Price: $335.00


SZM Series Optics Parameters

Eyepiece Working Distance
(100mm)
Auxiliary Objective
0.5X/165mm 1.5X/45mm 2X/30mm
Total times View field Total times View field Total times View field Total times View field
10X/20mm 7X 28.6 3.5X 57.1 10.5X 19 14X 14.3
45X 4.4 22.5X 8.9 67.5X 3 90X 2.2
15X/15mm 10.5X 21.4 5.25X 42.8 15.75X 14.3 21X 10.7
67.5X 3.3 33.75X 6.7 101.25X 2.2 135X 1.7
20X/10mm 14X 14.3 7X 28.6 21X 9.5 28X 7.1
90X 2.2 45X 4.4 135X 1.5 180X 1.1

How to mount the video adaptor
Some microscopes come with a photo tube. It should be removed before the video adaptor is installed.
