NV20 Series Spectrophotometers
List Price:
$566.00 (NV201)
|
List
Price: $599.00 (NV202)
|
Features:
l
Wide spectrum range, numerical displays of wavelength
and measurement.
l
Precise holographic grating.
l
Low stray light.
l
Auto "0" and "100%T".
l
All models equipped with RS232C port.
l
Small size and fine sculpt.
l
Setting of concentration factor and direct reading of
concentration.
l
Sample chamber obturated for easy operation.
l
Model NV203 comes with four sample-rooms, easy to
change the substance.
|
|
Specifications of NV20 Spectrophotometers
:
Model
|
NV201
|
NV202
|
NV203
|
Optical
system
|
Single
beam of light, C-T, 1200 line/mm holographic grating
|
Spectral
bandwidth
|
10nm
|
6nm
|
4nm
|
Wavelength
range
|
335-1000nm
|
Wavelength
accuracy
|
+-2nm
|
Wavelength
repeatability
|
1nm
|
Stray
light
|
0.1%T(
360nm , NaNO2) or less
|
Absorption
range
|
-0.3~2.5A
|
Photometric
accuracy
|
+-0.5%T
|
Photometric
repeatability
|
0.3%T
|
LED
Display
|
Transmittance,
Absorbance, Concentration, Wavelength
|
RS232C
|
Detector
|
Silicon
photo-diode
|
Light
source
|
Halogen
Tungsten Lamp
|
Cuvette |
10mm cuvette standard, 20mm, 30mm optional |
Power
|
110/220V, 60/50HZ
|
Dimension
|
385mm
* 310mm * 190mm
|
Net
weight
|
5.5kg
or less
|
Sample-rooms
|
1
|
4
|
|
NV Computer Interface
|
|

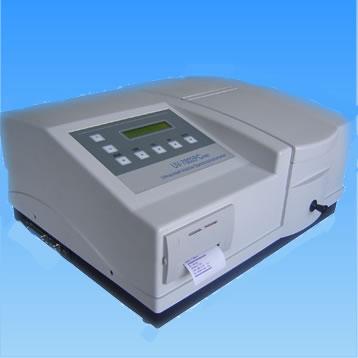

UV-7800C Series UV/VIS Spectrophotometers
|
|
Features:
* All UV-visible spectrophotometers feature high performance sealed optics
mounted on a stable platform. |
* The innovative optical layout and C-T monochromator with high grade blazed
holographic grating ensure high accuracy. |
* Integrated design assures long-term stability and durability. |
Specifications:
Model |
UV-7804PCPRINT |
UV-7804PC |
UV-7804CPRINT |
UV-7804C |
Wavelength range |
200-1000 nm, autoscan |
Slit width |
4 nm |
Wavelength accuracy |
±1.0 nm |
Wavelength setting repeatability |
≤0.5 nm |
Wavelength display |
In steps of 0.1 nm |
Wavelength calibration |
Automatic
at start |
Measurement range |
0-125 %T; -0.097-2.70 A; 0-1999 C (0-1999
F) |
Photometric accuracy |
±0.002 Abs (0 to 0.5Abs), ±0.004 Abs (0.5 to 1.0
Abs),±0.5 %T |
Photometric repeatability |
±0.001 Abs
(0 to 0.5Abs), ±0.002 Abs (0.5 to 1.0 Abs),±0.2 %T |
Stray light |
0.25 %T (at 220,340,420 nm) |
Baseline flatness |
=±0.005 Abs |
Baseline stability |
=0.004 Abs / 30min (at 500 nm, when measured at 2
hours after energization) |
0%T Line noise |
=±0.1 %T(at 500 nm, when measured at 2 hours after
energization) |
100%T Line noise |
=±0.3 %T(at 500 nm, when measured at 2 hours after
energization) |
Light source |
Automatic changeover linked with
wavelength.Changeover point can be set with UV-Solve application software |
Automatic changeover linked with
wavelength.Changeover point is set at 340 nm. |
Display |
20 x 2 LCD |
Data output |
Digital, RS232 serial |
Digital, RS232 serial, centronics parallel |
Digital, RS232 serial |
Digital, RS232 serial, centronics parallel |
Application software |
Windows- based UV-Solve application software |
/ |
Mini ¨C impact printer |
Equipped with mini-printer |
/ |
Equipped with mini-printer |
/ |
Power consumption |
(220V 10% 50Hz 150VA) or (110 V 10% 60Hz 150VA),
switchable |
Standard sample holder |
4-position sample holder |
Actual dimensions |
Spectrophotometer mainframe 456 W x 375 D x 220 H mm
(18.0 W x 14.8 D x 8.7 H in) |
Net weight |
19.0 Kg (42 lbs.) |
18.5 Kg (41 lbs.) |
19.0 Kg (42 lbs.) |
18.5 Kg (41 lbs.) |
Shipping dimensions |
Paperboard container 625 W x 520 D x 348 H mm (24.6 W
x 20.5 D x 13.7 H in) |
Shipping weight |
25.0 Kg (55 lbs.) |
24.5 Kg (54 lbs.) |
24.0 Kg (53 lbs.) |
23.5 Kg (52 lbs.) |
Table two:
Model |
UV-7802PCPRINT |
UV-7802PC |
UV-7802CPRINT |
UV-7802C |
Wavelength range |
200-1000 nm, autoscan |
Slit width |
2 nm |
Wavelength accuracy |
±0.5 nm |
±1.0 nm |
Wavelength setting repeatability |
≤0.2 nm |
Wavelength display |
In steps of 0.1 nm |
Wavelength calibration |
Automatic
at start |
Measurement range |
0-125 %T; -0.097-2.70 A; 0-1999 C (0-1999
F) |
Photometric accuracy |
±0.002 Abs (0 to 0.5Abs), ±0.004 Abs (0.5 to 1.0
Abs),±0.5 %T |
Photometric repeatability |
±0.001 Abs
(0 to 0.5Abs), ±0.002 Abs (0.5 to 1.0 Abs),±0.2 %T |
Stray light |
0.15 %T (at 220,340,420 nm) |
0.2 %T (at 220,340,420 nm) |
Baseline flatness |
=±0.005 Abs |
Baseline stability |
=0.004 Abs / 30min (at 500 nm, when measured at 2
hours after energization) |
0%T Line noise |
=±0.1 %T(at 500 nm, when measured at 2 hours after
energization) |
100%T Line noise |
=±0.3 %T(at 500 nm, when measured at 2 hours after
energization) |
Light source |
Automatic changeover linked with
wavelength.Changeover point can be set with UV-Solve application software |
Automatic changeover linked with
wavelength.Changeover point is set at 340 nm. |
Display |
20 x 2 LCD |
Data output |
Digital, RS232 serial |
Digital, RS232 serial, centronics parallel |
Digital, RS232 serial |
Digital, RS232 serial, centronics parallel |
Application software |
Windows-based UV-Solve application software |
/ |
Mini ¨C impact printer |
Equipped with mini-printer |
/ |
Equipped with mini-printer |
/ |
Power consumption |
(220V 10% 50Hz 150VA) or (110 V 10% 60Hz 150VA),
switchable |
Standard sample holder |
4-position sample holder |
Actual dimensions |
Spectrophotometer mainframe 456 W x 375 D x 220 H mm
(18.0 W x 14.8 D x 8.7 H in) |
Net weight |
19.0 Kg (42 lbs.) |
18.5 Kg (41 lbs.) |
19.0 Kg (42 lbs.) |
18.5 Kg (41 lbs.) |
Shipping dimensions |
Paperboard container 625 W x 520 D x 348 H mm (24.6 W
x 20.5 D x 13.7 H in) |
Shipping weight |
25.0 Kg (55 lbs.) |
24.5 Kg (54 lbs.) |
24.0 Kg (53 lbs.) |
23.5 Kg (52 lbs.) |
|
|
