*If you do not find the nozzles you need from the table above, we can
manufacture them for you.
|
Name |
Price |
|
|
31/33

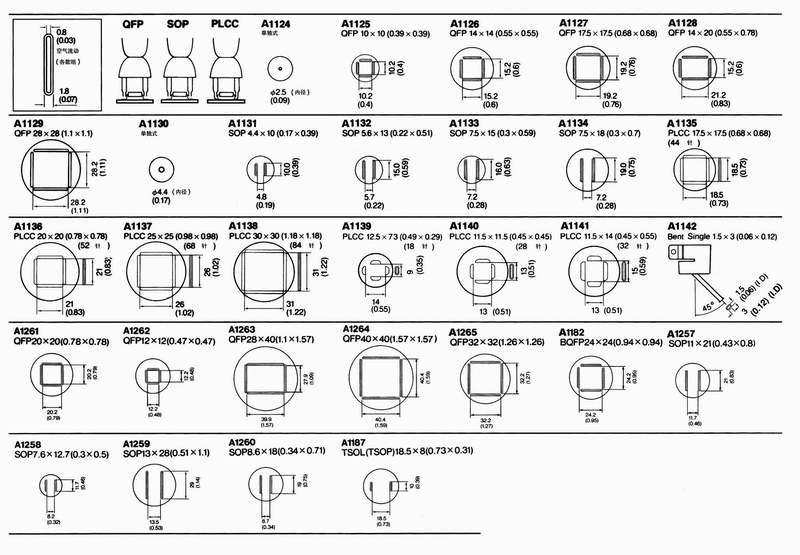

SMT Hot Air Nozzles
All the nozzles in the graph |
$446.00 |
|
|
6 Hor Air Nozzles-1
A1125,A1126,A1127,A1128,A1131,A1132 |
$86.00 |
|
|
6 Hor Air Nozzles-2
A1125,A1126,A1128,A1129,A1131,A1132
|
$87.00
|
|
|
Hot Air Nozzle A1110 |
$15.00 |
|
|
Hot Air Nozzle A1124 |
$16.50 |
|
|
Hot Air Nozzle A1125 |
$18.00 |
|
|
Hot Air Nozzle A1126 |
$18.50 |
|
|
Hot Air Nozzle A1127 |
$25.00 |
|
|
Hot Air Nozzle A1128 |
$25.00 |
|
|
Hot Air Nozzle A1129 |
$26.00 |
|
|
Hot Air Nozzle A1130 |
$13 |
|
|
Hot Air Nozzle A1131 |
$19 |
|
|
Hot Air Nozzle A1132 |
$19 |
|
|
Hot Air Nozzle A1133 |
$19 |
|
|
Hot Air Nozzle A1134 |
$20 |
|
|
Hot Air Nozzle A1135 |
$26 |
|
|
Hot Air Nozzle A1136 |
$28 |
|
|
Hot Air Nozzle A1137 |
$30 |
|
|
Hot Air Nozzle A1138 |
$33 |
|
|
Hot Air Nozzle A1139 |
$30 |
|
|
Hot Air Nozzle A1140 |
$31 |
|
|
Hot Air Nozzle A1141 |
$32 |
|
|
Hot Air Nozzle A1142 |
$26.25 |
|
|
Hot Air Nozzle A1170 |
$14 |
|
|
Hot Air Nozzle A1182 |
$29 |
|
|
Hot Air Nozzle A1187 |
$26.25 |
|
|
Hot Air Nozzle A1257 |
$29 |
|
|
Hot Air Nozzle A1258 |
$28 |
|
|
Hot Air Nozzle A1259 |
$28 |
|
|
Hot Air Nozzle A1260 |
$27 |
|
|
Hot Air Nozzle A1261 |
$30 |
|
|
Hot Air Nozzle A1262 |
$30 |
|
|
Hot Air Nozzle A1263 |
$37.50 |
|
|
Hot Air Nozzle A1264 |
$37.50 |
|
|
Hot Air Nozzle A1265 |
$34.50 |
|

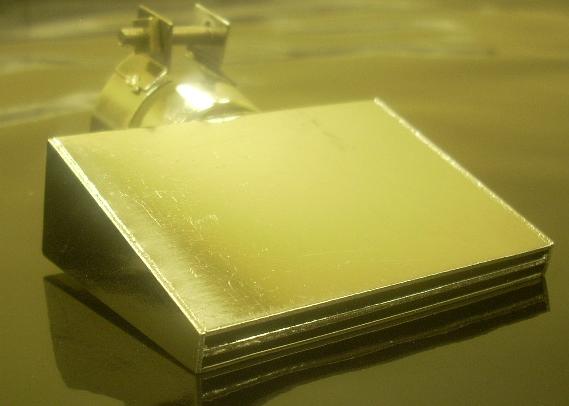

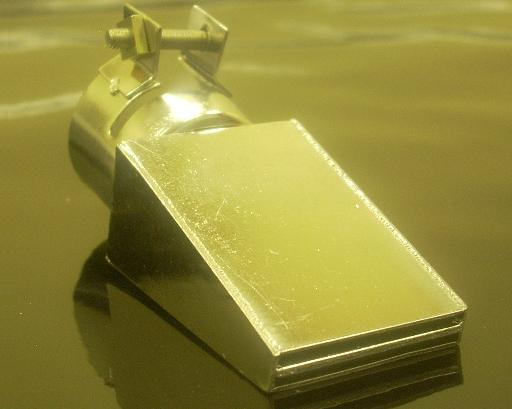

Customer Nozzles (can be purhased)
 |
57.5x6.0 mm customer connector nozzle |
 |
27.5x6.0 mm customer connector nozzle |
 |
17.5x12mm customer BGA nozzle, A1697 |
 |
48.5x35.5 customer QFP nozzle, A1714 |
Tips for QK936A, SD-04B, SD-06(937), AT201D, AT8502, QK702, and more
 |
 |
 |
| 900M-T-R |
900M-T-H |
900M-T-1.8H |
AT201D correction values
|
Name
|
|
Size mm(inch) |
Price
|
|
|
QSS960-T-0.8D
|
|
Ø0.8(0.031"), (thick) 0.6(0.0024"), (long)17(0.66") |
$6.00
|
|
|
QSS960-T-1.2D
|
|
Ø1.2(0.047"), (thick) 0.7(0.0028"), (long)17(0.66") |
$6.00
|
|
|
QSS960-T-1.6D
|
|
Ø1.6(0.06"), (thick) 0.5(0.002"), (long)17(0.66") |
$6.00
|
|
|
QSS960-T-2.4D
|
|
Ø2.4(0.09"), (thick) 0.5(0.002"), (long)17(0.66") |
$6.50
|
|
|
QSS960-T-3.2D
|
|
Ø3.2(0.12"), (thick) 0.5(0.002"), (long)17(0.66") |
$7.00
|
|
|
QSS960-T-B
|
|
Ø0.5(0.002"), (long)17(0.66") |
$6.00
|
|
|
QSS960-T-LB
|
|
Ø0.2(0.008"), (long)25(0.98") |
$7.00
|
|
|
QSS960-T-I
|
|
Ø0.2(0.008"), (long)17(0.66") |
$6.00
|
|
|
QSS960-T-LI
|
|
Ø0.15(0.005"), (long)17(0.66") |
$7.00
|
|
|
QSS960-T-0.8C
|
|
Ø0.8(0.031"), (long)17(0.66"), 45° |
$6.00
|
|
|
QSS960-T-1C
|
|
Ø1(0.04"), (long)15(0.6"), 60° |
$7.00
|
|
|
QSS960-T-2C
|
|
Ø2(0.08"), (long)17(0.66"), 45° |
$7.00
|
|
|
QSS960-T-3C
|
|
Ø3(0.1"), (long)17(0.66"), 45° |
$7.50
|
|
|
QSS960-T-4C
|
|
Ø4(0.16"), (long)17(0.66"), 45° |
$8.00
|
|
|
QSS960-T-K
|
|
Ø5(0.2"), (thick) 2(0.08"), (long)15(0.6"), 45° |
$8.00
|
|
|
900M-T-R
|
|
Ø5(0.2"), (thick) 2(0.08"), (long)17(0.66") |
$10.00
|
|
|
900M-T-H
|
|
Ø3.5(0.13")x1.2(0.04"), 7.5(0.29"), (long)19(0.74") |
$8.00
|
|
|
900M-T-1.8H
|
|
Ø1.8(0.07")x1.2(0.04"), 7.5(0.29"), (long)14(0.56") |
$9.50
|
|

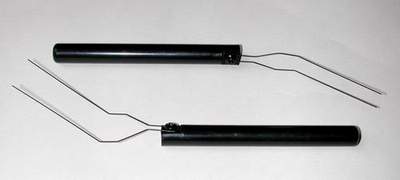

Chip pick up forks for IC desoldering removal. Unlike tweezers, the flexible
steel forks apply only soft force on the chip to prevent circuit board
damages. Every package contains one handle, two forks(narrow and wide ones).
|
Chip pick up forks (CPF)
|
$5.00
|
|
Optional nozzles
come with 8502,850B
Nozzles
come with 850D
Additional
available nozzles
|
