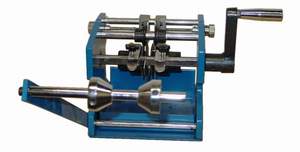

Manual Lead Trimmer/former
Price: $650.00
user's manual.
|
|
 |

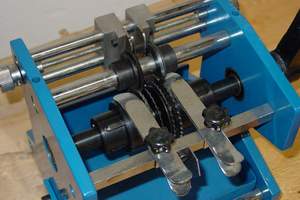

Taped Resistor Trimmer , SF-201
Price: $928.00
- Size: L520*W380*H300mm
- Weight: 24Kg
- Power: AC 110V/220V 60Hz/50Hz
|

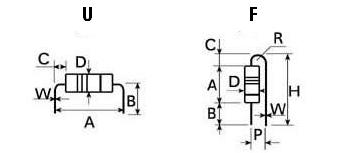

Model
|
SF-201S
|
SF-201U
|
SF-201W
|
SF-201F
|
|
A
|
5-40
|
6-40
|
6-40
|
4-18
|
|
B
|
3.6-15
|
3.6-15
|
3.6-15
|
|
|
C
|
Min. 0.6
|
Min. 1.2
|
Min. 1.2
|
Min. 4
|
|
D
|
1.5-8
|
.5-8
|
1.5-8
|
1.5-8
|
|
H
|
|
|
|
25Max
|
|
W
|
0.35-0.8
|
0.35-1
|
0.35-1.3
|
0.35-1
|
|
P
|
|
|
|
2.5-13.5
|
|
R
|
|
|
|
1
|
| Capacity |
40000pcs/h
|
84000pcs/h
|
40000pcs/h
|
40000pcs/h
|
All dimensions are in mm |
|
|

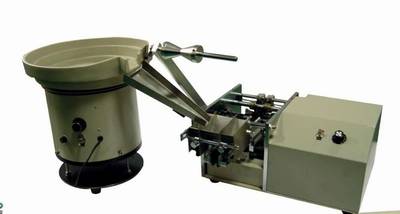

Loose, Taped Resistor Trimmer and former, SF-202
Price: $2240.00 (including vibration feeder)
- Can be used for both loose and taped resistors
- Size: L820*W500*H720mm
- Weight: 30Kg
- Power: AC 110V/220V 60Hz/50Hz
| Model |
SF-202U
|
SF-202F
|
|
A
|
6-40
|
4-18
|
|
B
|
3.6-15
|
1-20
|
|
C
|
Min. 1.2
|
Min. 3
|
|
D
|
1.5-8
|
1.5-8
|
|
W
|
0.35-1
|
0.35-1
|
|
H
|
|
Min. 25
|
|
P
|
|
2.5-13.5
|
|
R
|
|
1
|
| Capacity |
6000-10000 pcs/h
|
All dimensions are in mm |
|
 |

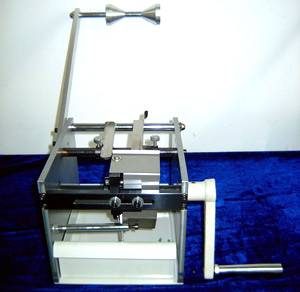

Manual Radial Lead Trimmer , SF-511
Price: $526.00
- Size: L430*W320*H320mm
- Weight: 17Kg
|
L
|
Leg length
|
3-20
|
|
W
|
Leg diameter
|
0.4-1.0
|
|
Capacity
|
36000PCS/H
|
All dimensions are in mm |
|
 |

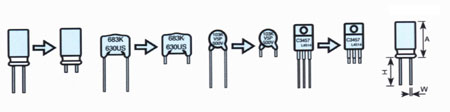

Radial Taped Parts Trimmer , SF-512
Price: $938.00
- Can be used for small to large parts, parts body diameter 3-10mm
- Part lead length: 3-20mm
- Lead diameter: 0.4-1.0mm
- Speed: 60000 pcs/hour
- Size: L520*W380*H300mm
- Weight: 24Kg
- Power: AC 110V/220V 60Hz/50Hz
|
|
 |

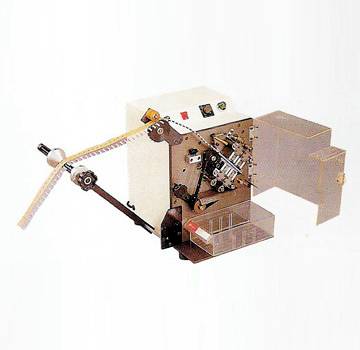

Radial Taped Parts Trimmer and Former, SF-560
- Can be used for small to large parts, parts body diameter 3-10mm
- Part lead length: 3-20mm
- Lead diameter: 0.4-1.0mm
- Speed: 7200 pcs/hour
- Size: L450*W450*H500mm
- Weight: 22Kg
- Power: AC 110V/220V 60Hz/50Hz
|
|
|

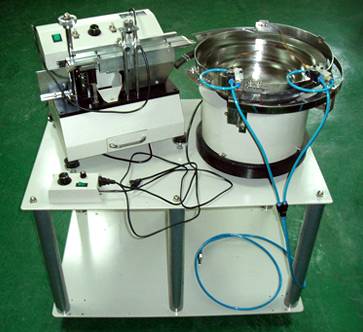

Radial Loose Parts Trimmer , SF-501
Price: $2312 (including vibration feeder)
- Can be used for small to large parts, parts body diameter 3-10mm, length
3-25mm
- Part lead length: 3-20mm
- Lead diameter: 0.4-1.5mm
- Speed: 5400 pcs/hour
- Size: L500*W380*H450mm
- Weight: 70Kg
- Power: AC 110V/220V 60Hz/50Hz
|
|
 |

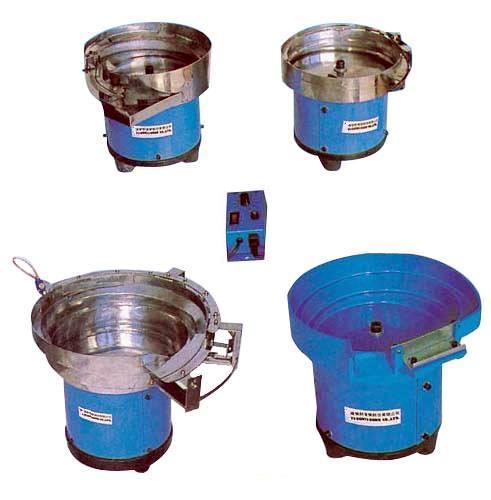

Vibration Feeders
|
|
 |

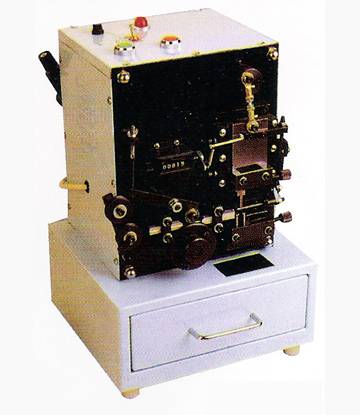

Jumper Wire Machine, SF-600
Price: $895
- Full automatic
- Adjustable for wire diameter from 5mm to 30mm
- Size: L320*W390*H400mm
- Weight: 40Kg
- Power: AC 110V/220V 60Hz/50Hz
|
|
 |

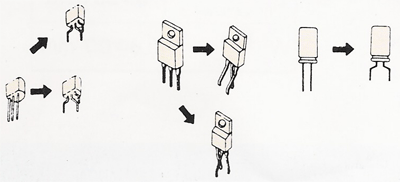

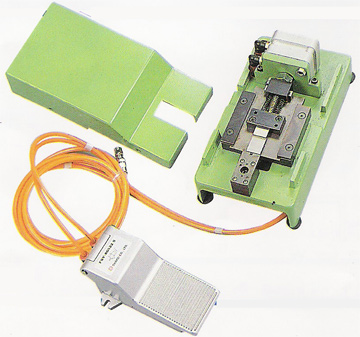

SF-306 Components Former
Price: $795
- Pneumatic
- Changable tooling to work with different parts
- Tooling sold seperately
- Size: L420*W300*H200m
- Weight: 12Kg
|
|
 |

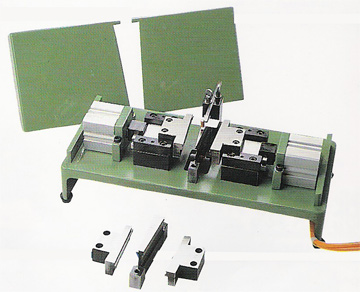

SF-308 Components Former
Price: $895
- Pneumatic
- Changable tooling to work with different parts
- Tooling sold seperately
- Size: L420*W300*H200m
- Weight: 12Kg
|
|
