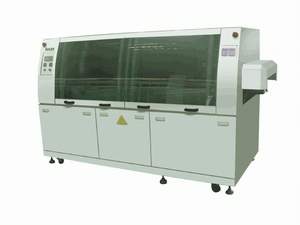

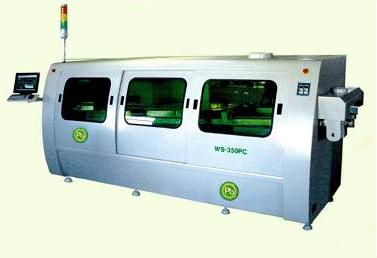

Model MD-150DS MD-250DS MD-300DS MD-350PC
Features
  • IR preheating, PID control, temperature variation<±2°C
  • Stainless solder pot, PID control, temperature variation<±2°C
  • PCB rail
  • Double waves, height adjustable
  • Can be connected directly with other equipment
  • IR preheating, PID control, temperature variation<±2°C
  • Stainless solder pot, PID control, temperature variation<±2°C
  • PCB rail
  • Double waves, height adjustable
  • Can be connected directly with other equipment
  • Hot air preheating, PID control, temperature variation<±2°C
  • Stainless solder pot, PID control, temperature variation<±2°C
  • PCB rail
  • Double waves, height adjustable
  • Optional cold air cooling
  • Can be connected directly with other equipment
  • 4 IR preheating zones, PID control, temperature variation<±2°C
  • Titanium solder pot, Computer control, temperature variation<±2°C
  • PCB rail
  • Double waves, height adjustable
  • Optional cold air cooling, top and bottom cooling
  • Can be connected directly with other equipment
  • Optional nitrogen
Max. PCB width 250 mm 250 mm 300 mm 350 mm, custome width available
PCB conveyor height 750±10 mm 750±10 mm 760±10 mm 750±20 mm
PCB conveyor speed 0~1.2 m/min 0~1.8 m/min 0~1.8 m/min 0~2 m/min
Preheating length 700 mm 700 mm 1200 mm 1800 mm
Preheating zones 1 1 1 (more optional) 4
Preheating mode IR IR IR IR standard, hot air optional
Preheating temperature room to 180°C room to 180°C room to 200°C room to 200°C
Preheating power 2 kW 4.5 kW 7.5 kW 12 kW
Solder types leaded leaded, lead-free leaded, lead-free leaded, lead-free
Cooling mode Forced air Forced air Forced air or optional cold air Forced air or optional cold air
Wave solder pot power 5 kW 8 kW 11 kW 11 kW
Solder pot capacity 60 kg 180 kg 350 kg 400 kg
Solder pot temperature room to 280°C room to 280°C room to 300°C room to 300°C
Temperature control PLC PLC PLC standard, computer optional PC, Windows XP
Flux tank capacity 3 L 5.2 L 5.2 L 5.2 L
Power Single phase, 220V 3 phase, 5 lines, 380V 3 phase, 5 lines, 380V 3 phase, 5 lines, 380V (or 220V)
Starting power 8 kW 13 kW 25 kW 23 kW
Normal operation power 5 kW 5.5 kW 7.5 kW 8 kW
Compressed air requirement 12.5 L/min 12.5 L/min 12.5 L/min 12.5 L/min
Size (LxWxH) 1.3 x 1.0 x 1.6 m 2.3 x 1.0 x 1.8 m 2.6 x 1.2 x 1.6 m 4.3 x 1.36 x 1.68 m
Weight 85 kg 600 kg 1000 kg 1350 kg
Contact to Order Contact to Order Contact to Order Contact to Order

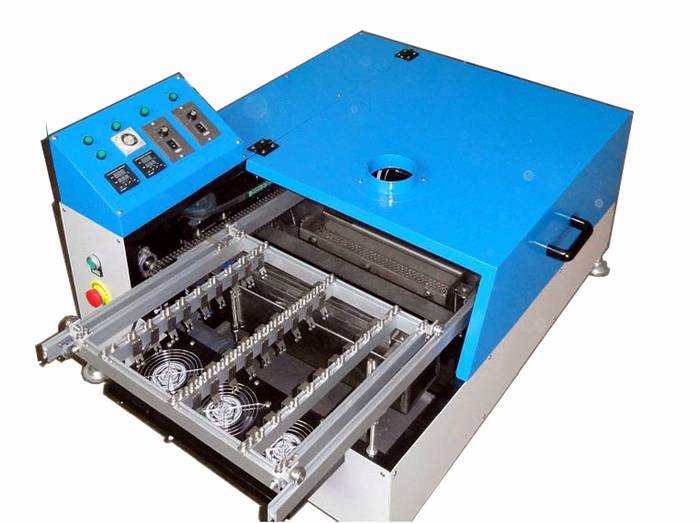

TWS-100 wave soldering machine



Price: $6750.00

TWS-100 Specifications:
Control panel, no computer necessary
Adjustable width conveyor with titanium fingers
Automatic fluxing
Single wave, adjustable height
Three cool down fans
Temperature to 350°C, good for lead free
70Kg solder capacity

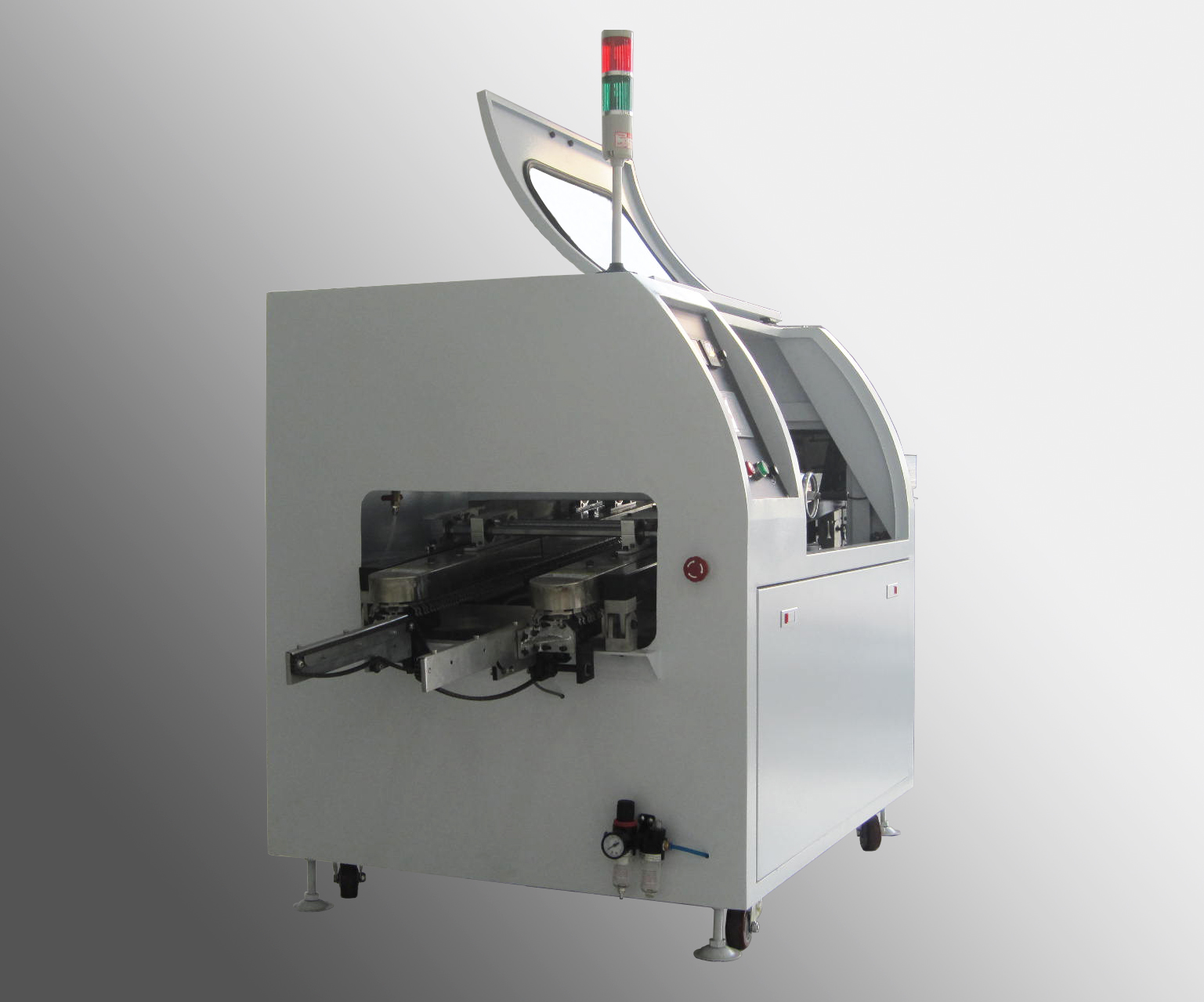

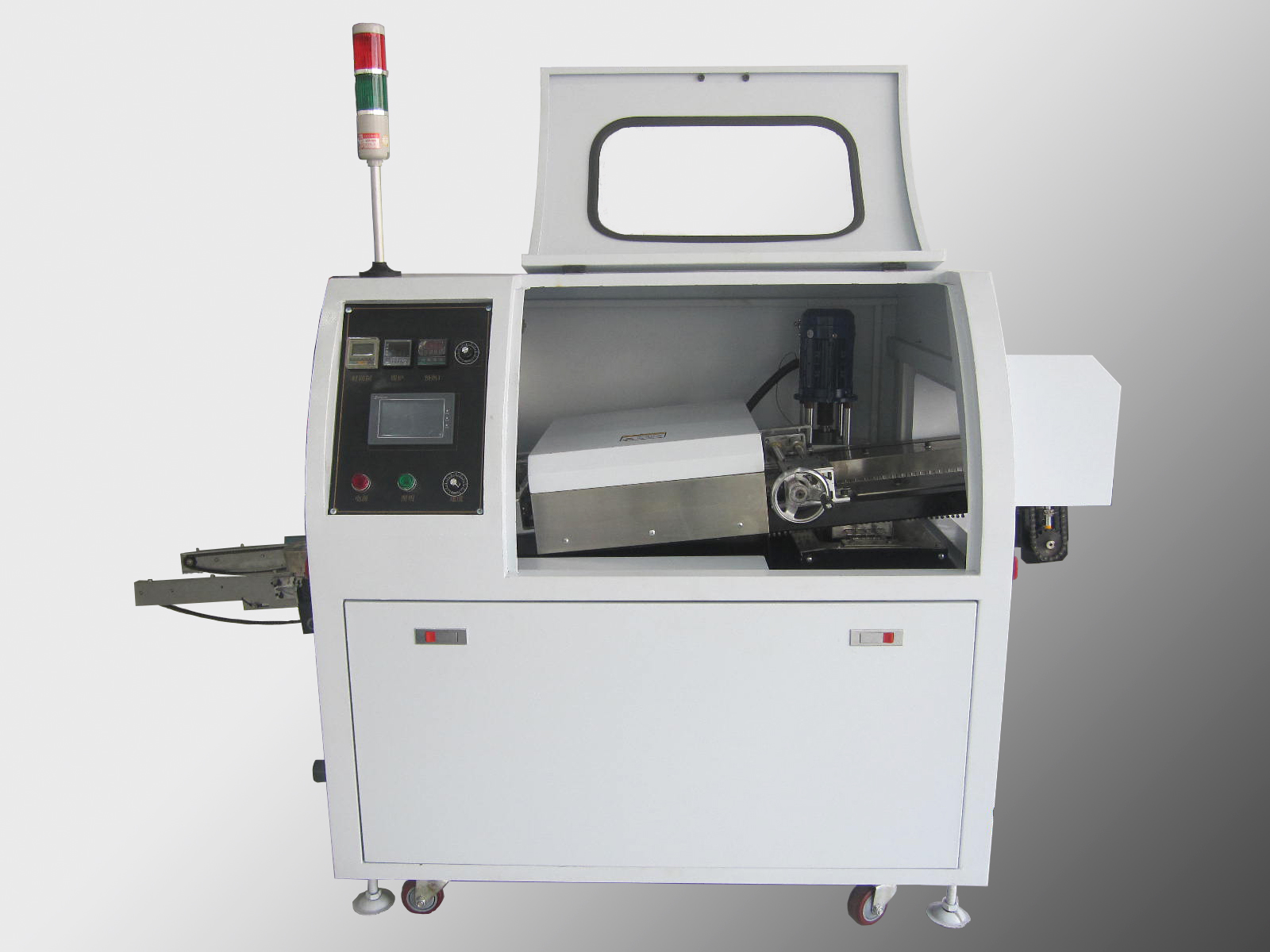

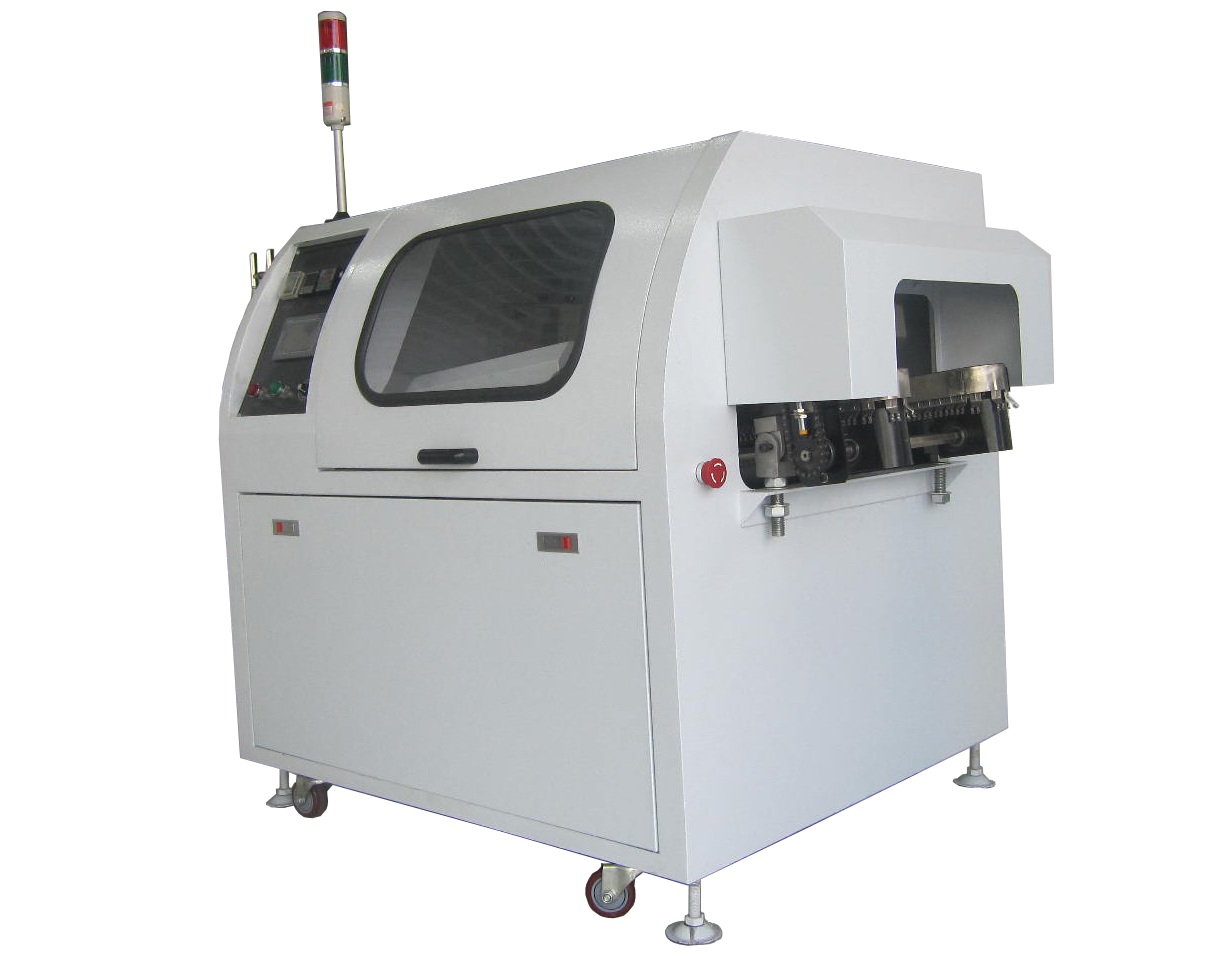

MD-150DS

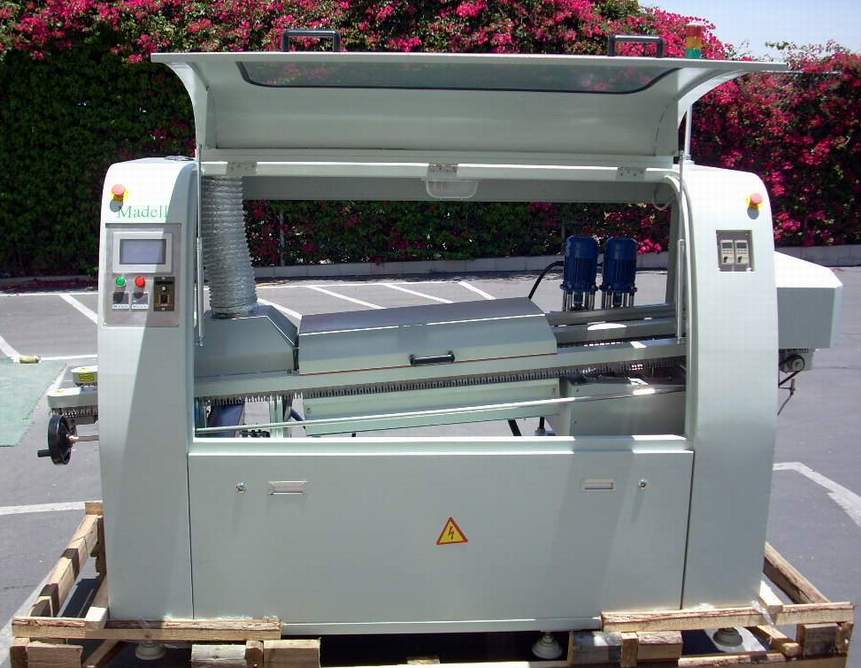

MD-250DS pic
