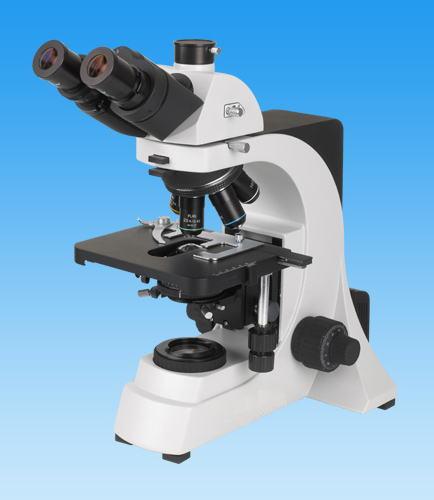

XY Series Clinical Biological Microscopes

Sale Price: $1,094.00



Color corrected optical system
    §   The design corrects aberration on the traditonal optical system,
    §  The color Corrected Optical System designed to suit customers requirements, including dark filed, phase contrast accessories, polarizing kits, and fluorescence light etc.
  Microscope Stand
    §  XY series microscope can be optimal integrates and maximum expandability as fully functions.
     §  Shapely configuration, the “Y” Stand ensured the stability of the microscope. XY Series is handled more comfortable because of the Ergonomic design.
     §  Ergonomic design has made XY comfortable with the manner in which you working. The focusing controls and the brightness controls are greatly improved the comfort for the user.

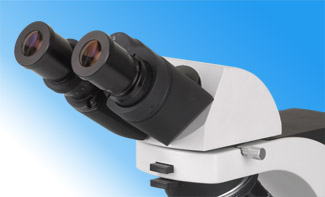

  Head & Eyepiece
     §  Gemel type of binocular head with an inclination of 30° , optional 30° ~60° head.
    §  PL10X high eye-point plan eyepiece, 22mmm viewfield. Recital for measure can be installed in eyepiece.

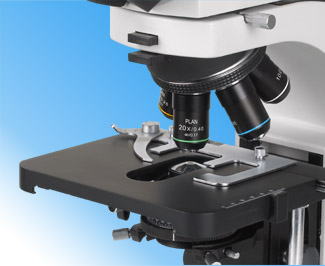

  Objective & Nosepiece
    § Reversed quintuple nosepiece completed with infinity plan achromatic objective(4X,10X,20X,40X,100X) assure fine and clearly under each times.
  Stage
     §  Stage Size:175 * 145mm
     §  Journey: 75 * 50mm
     §  Precision: 0.1mm
     §  Focus: Lowness coaxial focus system

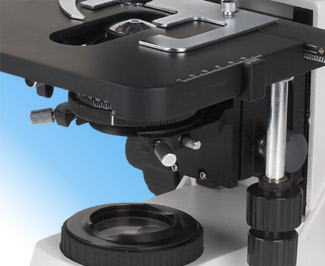

 Illuminator
     §  The 6V/30W halogen bulb(philips5761) koehler illuminator system,center of light adjusting.
     §  Illuminator system can be seasoned with 90V~240V fluctuate of voltage. Brightness adjustment.

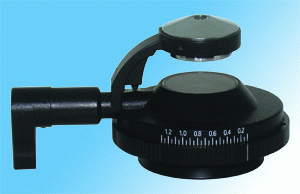

  Condenser
    §   Comes with N.A.1.2/0.22 swing achromatic condenser
.

Specification


Optical
Color corrected Infinity optical system
Head Gemel type of binocular head,30° inclined
Gemel type of trinocular head, 30° inclined
Gemel type of binocular head, 30° ~60° inclined(customer order)
Eyepiece PL10X22mm high eye-point plan eyepiece
Nosepiece Reversed quintuple nosepiece, reversed quadruple nosepiece for optional.
Objective Infinity plan achromatic objective 4X,10X,20X,40X,100X.
Plan phase contrast objective 10X,20X,40X,100X
Focus lowerness locate Coaxial focus system
Stage 175mm *145mm mechanical stage, adjusting for right or left hand.
75mm * 50mm moving range.
Condenser N.A.1.2/0.22 swing achromatic condenser
N.A.1.25 five position phase contrast condenser
N.A.0.9 dry darkfiled condenser.
N.A. 1.25 wet drakfiled condenser.
Illuminator Built-in koehler illuminator systems. 6V/30W halogen bulb,adjustment of brightness.

Standard specifications and accessories
